Remove/install power module of headlamp range adjustment (HRA [LWR]) - AR82.10-P-4013RT
MODEL 251 with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
| Remove/install | |||
| Risk of death caused by contact with parts conducting high voltages. | Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) should never perform any work on the ignition system | AS15.10-Z-0001-01A | |
| Risk of death
caused by high voltage levels present at xenon headlamps. Risk of explosion/fire hazard through highly flammable material in the area of damaged xenon bulbs. Risk of injury through UV light, hot components on xenon headlamps and glass splinters when xenon bulbs burst. Risk of poisoning through inhalation of mercury vapor and swallowing of or skin contact with toxic salts and mercury compounds. |
Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on xenon headlamps. Switch off complete lighting system. Wear insulating safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure that the workplace is sufficiently ventilated. | AS82.10-Z-0001-01A | |
| 1.1 | Remove fender liner front section in front fender | AR88.10-P-1310RT | |
| 1.2 | Remove right front lamp unit (E2) | AR82.10-P-4730RT | |

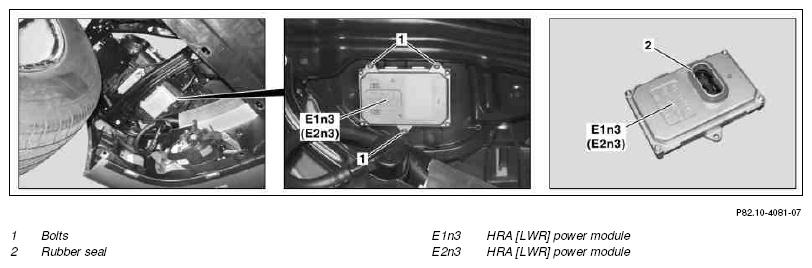

| 2 | Remove bolts (1) | ||
| 3 | Pry up HRA [LWR] power module (E1n3, E2n3) | ||
| 4 | Install in the reverse order | ||
| Checking | |||
| 5 | Adjust the zero position of the xenon headlamps | STAR DIAGNOSIS system | *WH58.30-Z-1048-13A |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 6 | Check the setting of the xenon headlamps and adjust if necessary |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS Compact diagnosis system for passenger cars | 6511 1801 00 |
