Remove/install rear axle level sensor - AR82.10-P-0005GZ

MODEL 164

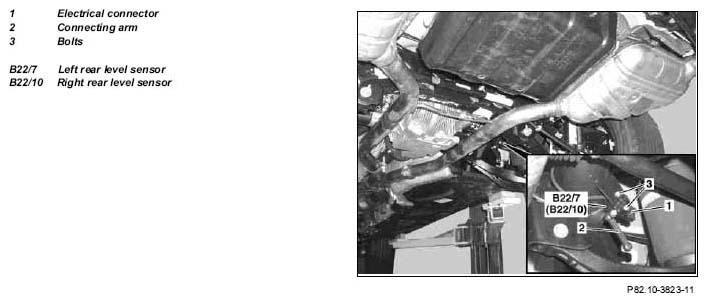

Fig 1: Identifying Rear Level Sensor, Electrical Connector, Connecting Arm And Bolts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Place vehicle on lifting platform		AR00.60-P-1000GZ
2	Turn key in ignition switch to position "0".	On vehicles with Keyless Go, code 889: Press keyless go start/stop button repeatedly until ignition is switched off
3	Disconnect electrical connector (1)
4	Remove connecting arm (2) from left rear level sensor (B22/7) or right rear level sensor (B22/10)
5	Remove bolts (3)		*BA82.10-P-1001-02C
6	Remove left rear level sensor (B22/7) or right rear level sensor (B22/10)
7	Install in the reverse order
	Checking
8	Adjust the zero position of the xenon headlamps
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

REAR AXLE LEVEL SENSOR

Number	Designation		Model 164.1/8
BA82.10-P-1001-02C	Bolt, level sensor to retaining plate	Nm	4

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
