Remove/install brake fluid reservoir - AR42.10-P-0301GG

MODEL 460, 461

MODEL 463 except CODE (979) Special protection version

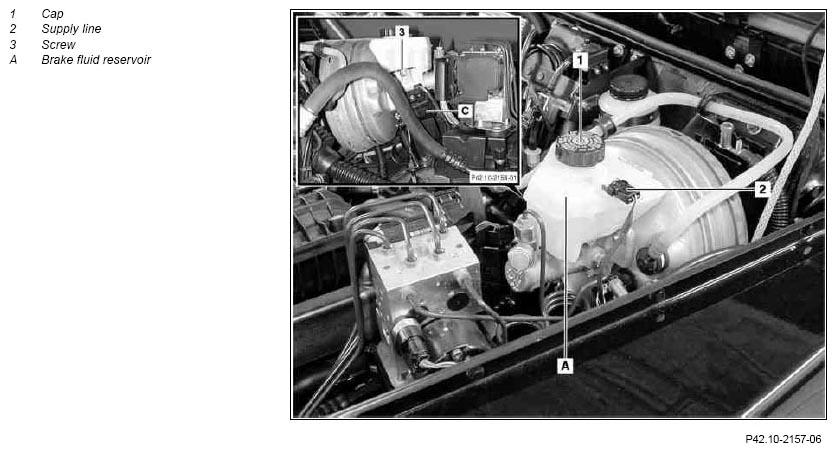

Fig 1: Identifying Brake Fluid Reservoir Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Brake Fluid Reservoir Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Brake Fluid Reservoir Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Unscrew cap (1).	Installation:  Only install cap (1) with seal.
2	Remove filter screen from brake fluid reservoir (A)
3	Suction off brake fluid from the brake fluid reservoir (A)
4	Release feed line (2) and detach
5	Remove bolt (3) If installed
6	Detach brake fluid reservoir (A) from master brake cylinder	Protect painted surfaces from brake fluid to avoid any paint damage.
7	Replace sealing rings (B)	Installation:  Rub the new sealing rings (B) with brake fluid.
8	Install in the reverse order
9	Fill with fresh brake fluid
	Hydraulic brake system - check fluid level, correct if necessary		AP42.50-P-4210G
10	Bleed brake system	Except model 463.270/271	AR42.10-P-0010GG
		Model 463.270/271	AR42.10-P-0010GX
