Steering wheel gear shifter, location/task/function - GF27.19-P-5137NT

TRANSMISSION 722.9 in MODEL 211, 219 up to 31.5.06 with CODE (428) Steering wheel shift buttons

Shown on model 211

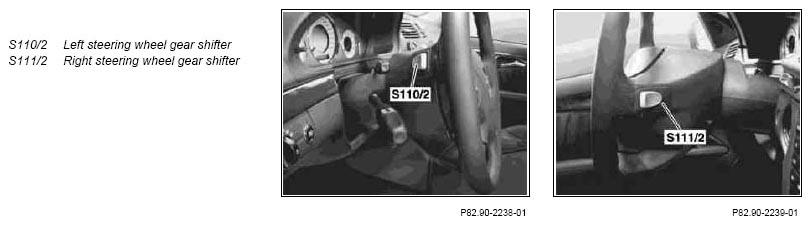

Fig 1: Locating Steering Wheel Gear Shifters

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Steering wheel gear shifter, location	The left steering wheel gear shifter (S110/2) is located on the left, the right steering wheel gear shifter (S111/2) is located on the right on the rear of the multifunction steering wheel (MFL).
Steering wheel gear shifter, task	Shifting range preselection Shifting into a gear from which the vehicle can be favorably accelerated or decelerated. Direct shifting of all forward gears
Steering wheel gear shifter, function		GF27.19-P-5137-04NT
