Check caster and assign to tabular value - AR40.20-P-0322-03T

CHECK AND ADJUSTMENT VALUES FOR CASTER

Number	Designation		Model 211	Model 219
BE40.20-P-1001-20A	Permissible difference in caster between right and left sides of the vehicle	∠°	30'	30'
BE40.20-P-1002-20A	Caster	See table	AR40.20-P-0322-03T	AR40.20-P-0322-03T

Model 211 without 4MATIC

Model 219

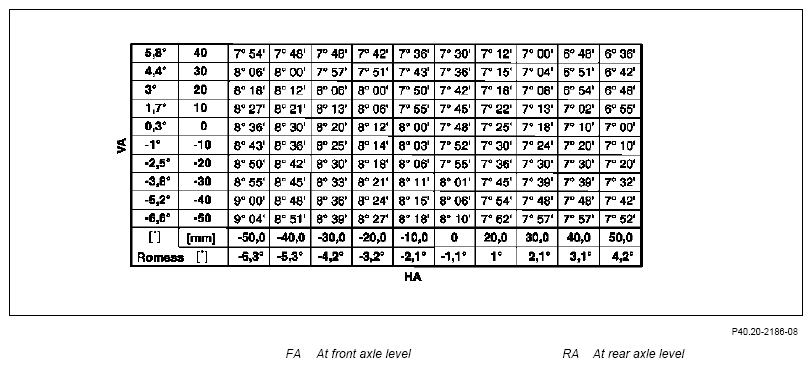

Fig 1: Caster Angle Chart (Model 211 Without 4MATIC And Model 219)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 211 with 4MATIC

Fig 2: Caster Angle Chart (Model 211 With 4MATIC)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Caster tolerance: ±30'

The level values are displayed by the electronic level measuring device in decimal degrees [°].

Obtain the caster value from the table taking into account the front axle and rear axle level value measured previously.
