Adjusting fixtures for distance and comparative measurement according to the model concerned - AR40.30-P-0401-01T

Fig 1: Identifying Mount (170 589 00 63 00)

G07507000

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Insert hanger (07) horizontal and adjust dimensions on the supports (07r, 07s), see Table.
The suspension (07) enables the vehicle center to be displayed with the check point (K).

Shown on model 211 without 4MATIC

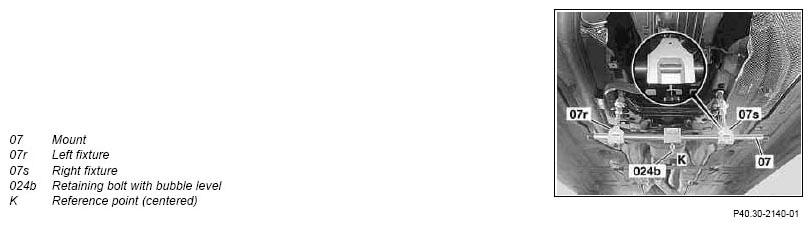

Fig 2: Adjusting Fixtures (Model 211 Without 4Matic)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211 with 4MATIC

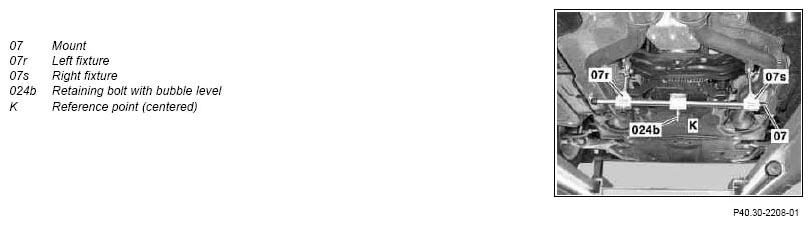

Fig 3: Adjusting Fixtures (Model 211 With 4Matic)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

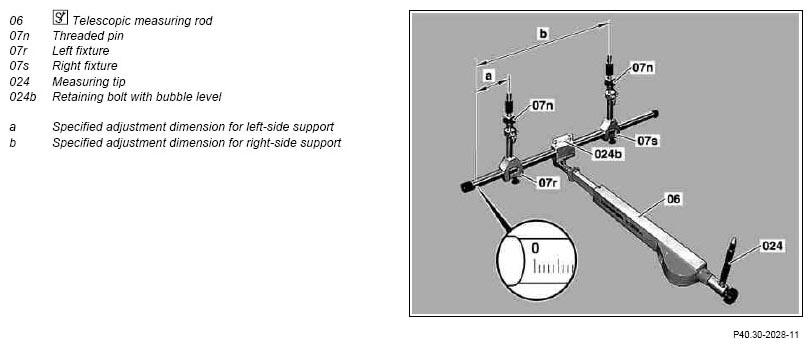

Fig 4: Identifying Adjustment Dimensions For Supports
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Designation			Model 211 without 4MATIC, model 219	Model 211 with 4MATIC
Dimension	a	mm	45	45
Dimension	B	mm	410	505
