TIREFIT puncture sealing compound - check expiration date - AP40.10-P-4054R

MODEL 163, 164, 168, 169, 170, 171, 203, 209, 211, 216, 219, 221, 230, 240, 245, 246, 414 except CODE (669) Spare tire on steel rim except CODE (679) Spare tire in structural wheel design except CODE (690) Emergency wheel except CODE (R66) Run-flat tires

Model 170, 171, 203, 230,

Model 209 without code (P98) Black Series, Shown on model 230

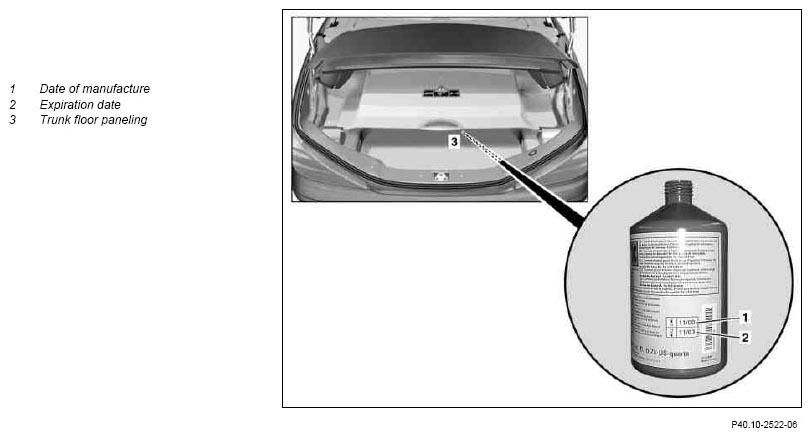

Fig 1: Identifying Date Of Manufacture And Expiration Date Of Sealing Compound (Shown On Model 230)

G07507056

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 168, 246, Shown on model 168

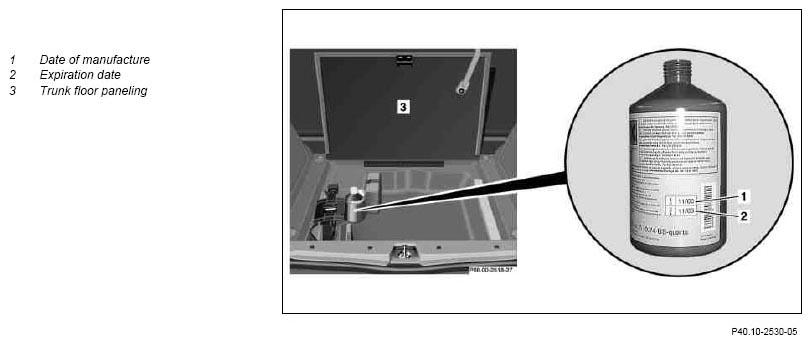

Fig 2: Identifying Date Of Manufacture And Expiration Date Of Sealing Compound (Shown On Model 168)

G07507057

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 209 with code (P98) Black Series

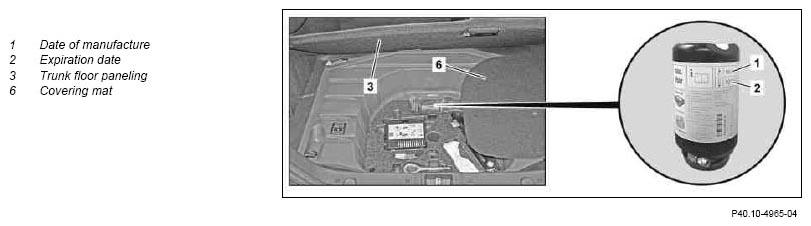

Fig 3: Identifying Date Of Manufacture And Expiration Date Of Sealing Compound (Model 209 With Code (P98) Black Series)

G07507058

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 211.0

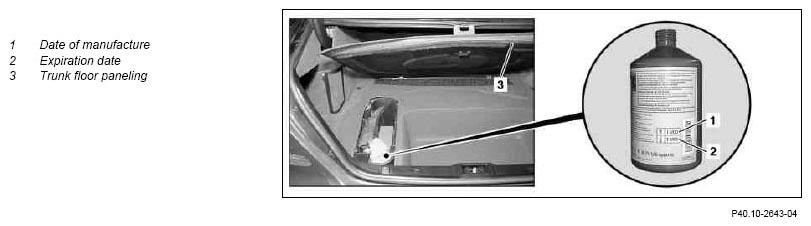

Fig 4: Identifying Date Of Manufacture And Expiration Date Of Sealing Compound (Model 211.0)

G07507059

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 164, 211.2/6

Shown on model 211.2

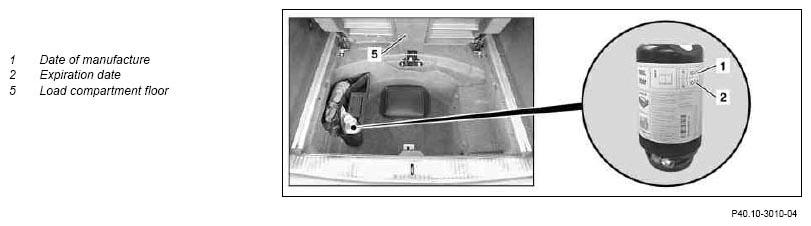

Fig 5: Identifying Date Of Manufacture And Expiration Date Of Sealing Compound (Shown On Model 211.2)

G07507060

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 240

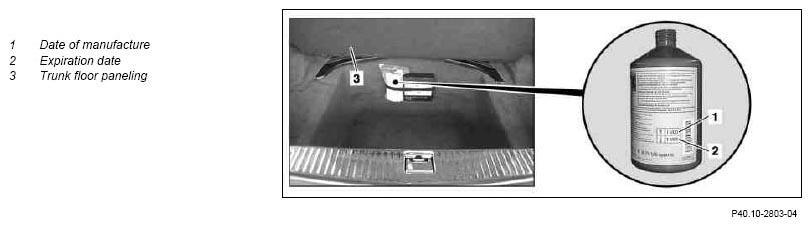

Fig 6: Identifying Date Of Manufacture And Expiration Date Of Sealing Compound (Model 240)

G07507061

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 163, 169, 245, 414

Illustrated on model 169

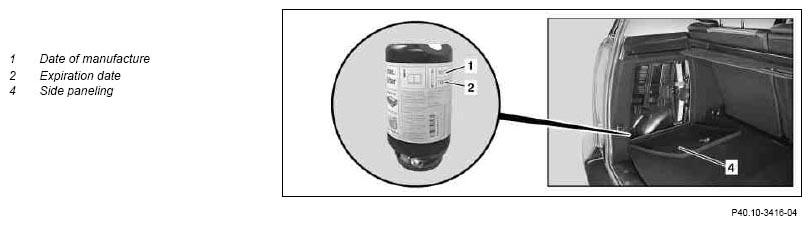

Fig 7: Identifying Date Of Manufacture And Expiration Date Of Sealing Compound (Illustrated On Model 169)

G07507062

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 219.3

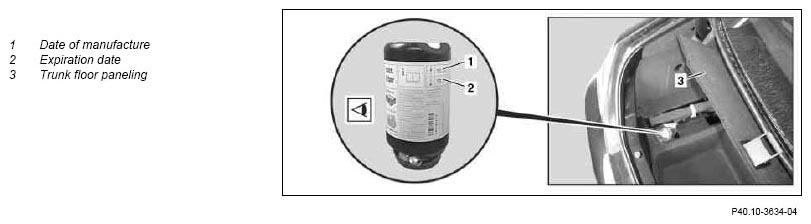

Fig 8: Identifying Date Of Manufacture And Expiration Date Of Sealing Compound (Model 219.3)

G07507063

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 216, 221

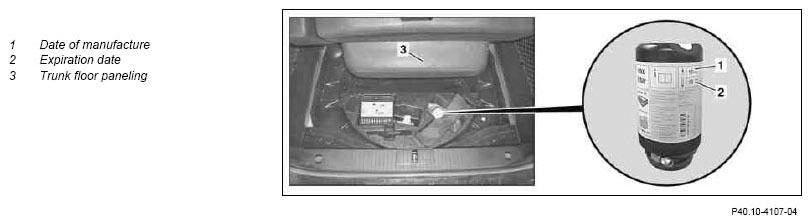

Fig 9: Identifying Date Of Manufacture And Expiration Date Of Sealing Compound (Model 216, 221)

G07507064

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of poisoning caused by swallowing the TIREFIT emulsion. Risk of injury caused by skin contact and eye contact with the TIREFIT emulsion. Risk of fire caused by ignition of the TIREFIT emulsion	Do not swallow or come into contact with the TIREFIT tire sealant, which is an emulsion of rubber and terpene phenolic resin. No open fire or open light sources.	AS40.10-Z-0001-01A
1	Open trunk lid or liftgate	For model 211.6 the place where the TIREFIT tire repair kit is kept can vary depending on the vehicle body, see body manufacturer's operating manual.
2.1	Lift or remove trunk floor paneling (3)	Model 168, 170, 171, 203, 209, 211.0, 216, 219, 221, 230, 240, 246
2.2	Lift load compartment floor (5)	Model 164, 211.2 /6 For model 211.6 the place where the TIREFIT tire repair kit is kept can vary depending on the vehicle body, see body manufacturer's operating manual.
2.3	Open left side paneling (4) in luggage compartment	Model 163, 169, 245, 414
3	Place cover mat (6) over vehicle tool kit insert to one side	Model 209 with code (P98) Black Series
	Checking
4	Check expiration date (2) on the bottle.	Replace the TIREFIT tire sealant when the expiry date (2) is reached. Dispose of obsolete TIREFIT tire repair kit in proper manner.
	TIREFIT tire sealant		AH40.10-P-0001-01A
5	Install in the reverse order
