Wheel sensor, design - GF40.15-P-3200-03A
Model 210.074 /274
Model 211, 215, 220, 230, 240
Design

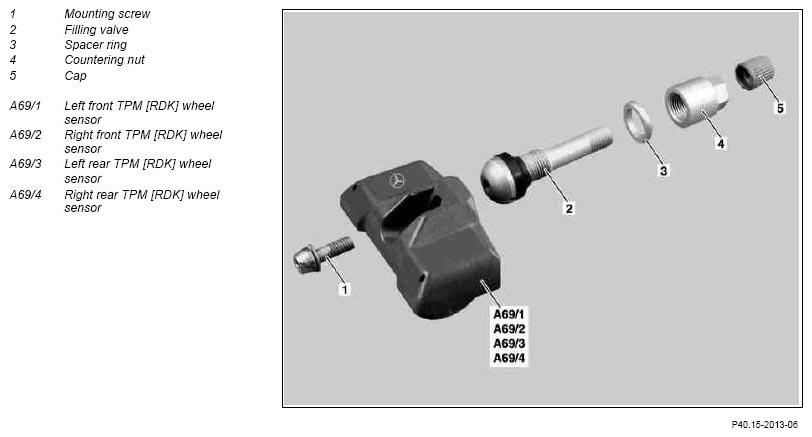

Together with the filling valves (2) the left front TPM [RDK] wheel sensor (A69/1), right front TPM [RDK] wheel sensor (A69/2), left rear TPM [RDK] wheel sensor (A69/3) and right rear TPM [RDK] wheel sensor (A69/4) form a compact unit and are fitted to the rims like a screw-on valve. Modifications to the rims are not required.
The following are located in the housings:
- 1 pressure sensor
- 1 temperature sensor
- 1 transmission stage
- 1 Lithium battery for internal voltage supply
