Wheel antenna, location / function - GF40.15-P-3101A
MODEL 210.074 /274, 215, 220, 240 with CODE (475) Tire pressure monitor
MODEL 211, 230 up to 31.5.05 with CODE (475) Tire pressure monitor except CODE (494) USA version except CODE (498) Japan version
MODEL 211, 230 up to 30.6.05 with CODE (475) Tire pressure monitor with CODE (494) USA version with CODE (498) Japan version

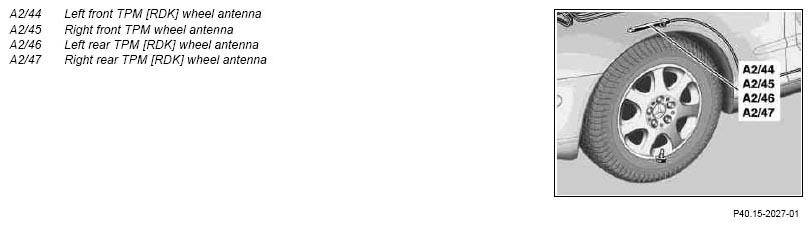

| Wheel antenna, location | Installed in the corresponding wheelhouses. |
| Wheel antenna, function | The air pressure values of the individual wheels determined are received telemetrically and passed on to the TPM [RDK] control unit (N88). The wheel position is detected by the measurement of field strengths. |
