Tire pressure loss warning (RDW) Mercedes-Benz Driver Information Service - GF40.15-P-0002-03T
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

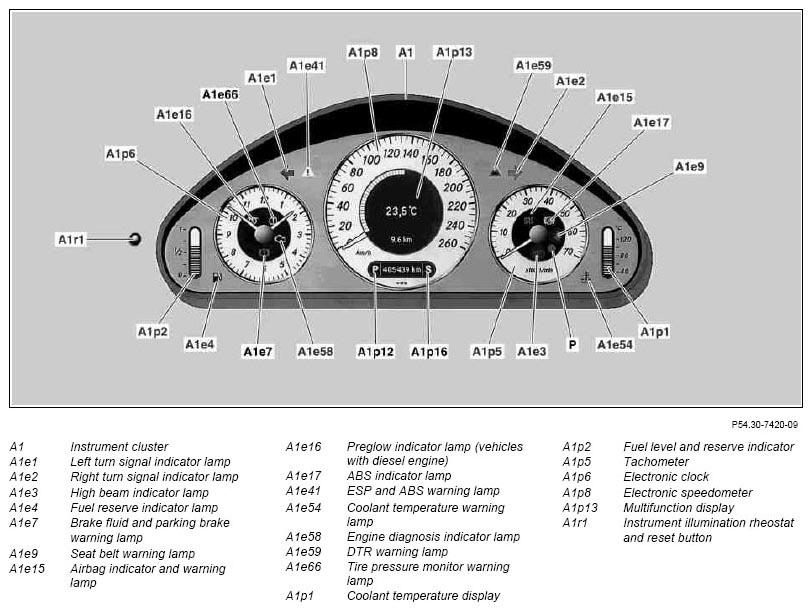

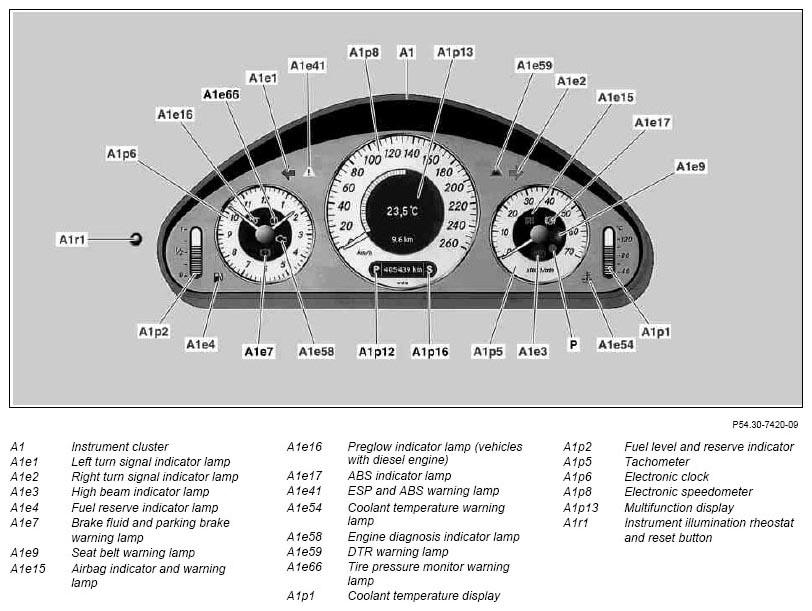

The tire pressure loss warning (RDW) can be displayed in the multifunction display (A1p13) in the instrument cluster (A1). These can be shown as follows:
- Warning messages
- Information displays
The messages in the multifunction display (A1p13) may be:
- shown against a colored background
- acknowledgeable
- not acknowledgeable
System information
The tire pressure loss warning (RDW) is only available as of "circuit 15 ON".
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Selection display
This display appears when a reactivation is performed
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Selection display
Once the tires have been checked, the confirmation for the tire pressure loss warning (RDW) is given in this display.
If this confirmation does not follow, the tire pressure loss warning is not active.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Confirmation display
This display appears as confirmation that tire pressure loss warning (RDW) is active.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Warning message
Warning message while driving.
The tire pressure loss warning (RDW) has established that the rolling circumferences of the wheels have changed relative to each other. Checking the wheels is necessary.
The message can be acknowledged.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
System reminder
Since the last red warning message the tire pressure loss warning (RDW) has not yet been restarted.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
System message
With this display the driver's acknowledgment is no longer possible.
Activation is only possible in the workshop using STAR DIAGNOSIS.
