TPM system activation button, location/task - GF40.15-P-3603T
MODEL 211 up to 31.5.05 with CODE (475) Tire pressure monitor except CODE (494) USA version except CODE (498) Japan version
MODEL 211 up to 30.6.05 with CODE (475) Tire pressure monitor with CODE (494) USA version with CODE (498) Japan version

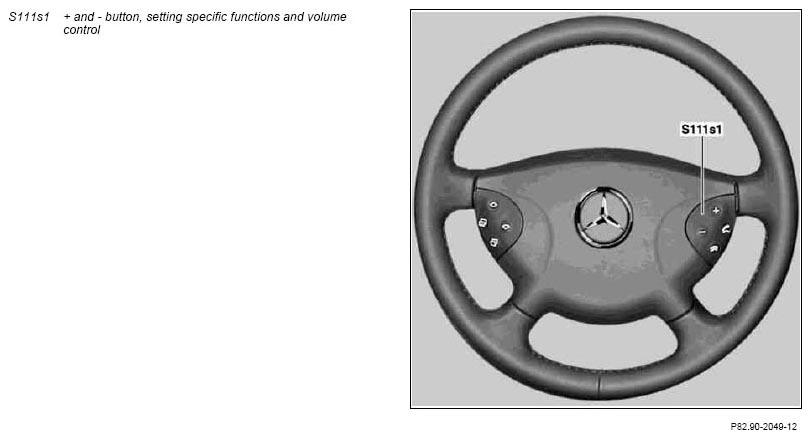

| TPM system activation button, location | The TPM system activation button is located on the right-hand side of the multifunction steering wheel. It is the "+" button on the + and - button (setting specific functions and volume control) (S111s1). |
| TPM system activation button, task | When the system is activated, the air pressures for the wheels set by the driver are stored in the TPM control unit (N88) as the desired monitoring data. |
