Remove/install rear dome lamp - AR82.20-P-0113TA

MODEL 211.0 with CODE (413) Panoramic sliding roof

MODEL 211.0 with CODE (413) Panoramic sliding roof with CODE (419) Solar module for panoramic roof

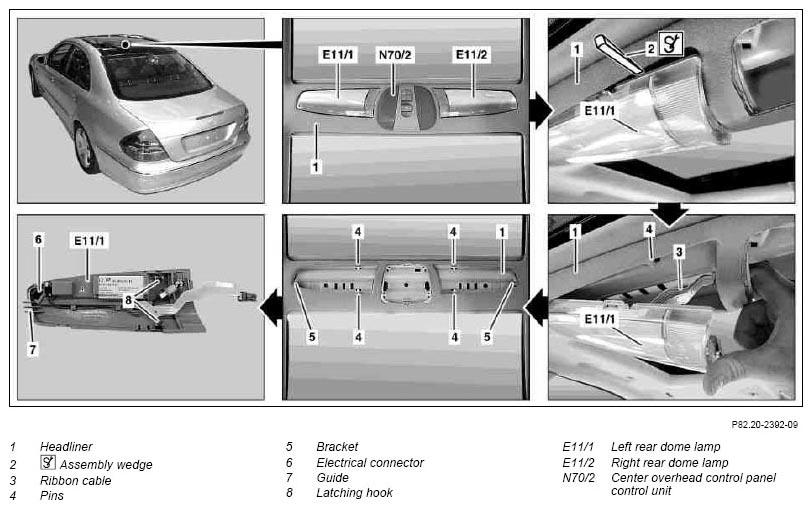

Fig 1: Identifying Rear Dome Lamp Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove center overhead control panel control unit (N70/2)		AR82.20-P-1105T
2	Push out left rear dome lamp (E11/1) or right rear dome lamp (E11/2) from headliner (1) and lower a short distance	Mounting wedge Installation:  Insert guide (7) into mounting (5) and make sure that the snap-in hooks (8) have engaged into the studs (4).	Figure
3	Feed in ribbon cable (3)	Do not damage ribbon cable (3).
4.1	Disconnect electrical connector (6) from the left rear dome lamp (E11/1)	Only when removing the left rear dome lamp (E11/1). Do not twist left rear dome lamp (E11/1) to prevent damaging the ribbon cable that leads to the electrical connector (6).
5	Remove left rear dome lamp (E11/1) or right rear dome lamp (E11/2)
6	Install in the reverse order
