Remove/install rear dome lamp - AR82.20-P-0113T

MODEL 211.0 except CODE (413) Panoramic sliding roof

MODEL 211.2/ 6

Shown on model 211.0

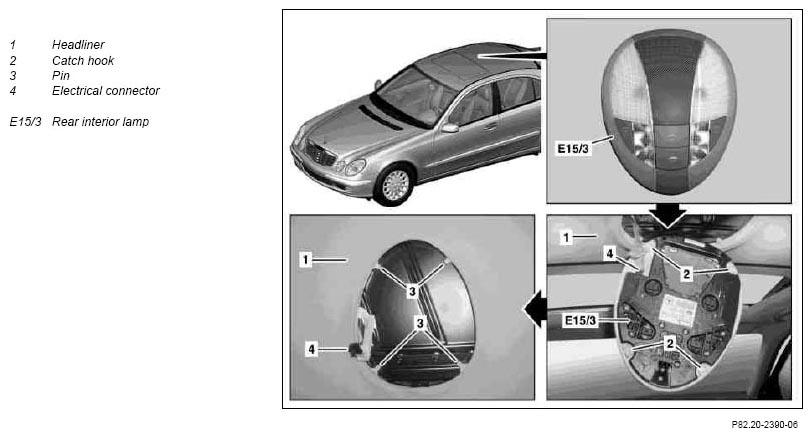

Fig 1: Identifying Rear Dome Lamp Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1.1	Switch off the ignition and remove the transmitter key from the EIS control unit	On vehicles without code (889) Keyless Go
1.2	Switch off ignition, remove transmitter key from transmission range of vehicle	On vehicles with code (889) Keyless Go
2	Remove rear interior lamp (E15/3) using mounting wedge from headliner (1)	Remove rear interior lamp (E15/3) carefully, as ribbon cable may be damaged.
		Installation:  make sure that the catch hook (2) latches into the notch (3).	Fig 2
3	Disconnect electrical connector (4) and remove rear interior lamp (E15/3)	Carefully disconnect electrical connector (4) as ribbon cable could be damaged.
4	Install in the reverse order

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
