Remove and install wiper arm - AR82.30-P-6100T
MODEL 211.0 /2 /6
MODIFICATION NOTES
| 1.7.08 | Special tool added | Steps 4 and 6 | Fig 2 |
| Remove/install | |||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities. | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| 1 | Move wiper arms to park position | ||
| 2.1 | Switch ignition off, remove key from electronic ignition switch EIS | On vehicles without code (889) Keyless go | |
| 2.2 | Switch off engine, remove transmitter key for Keyless Go out of vehicle and keep outside the range of the transmitter | On vehicles with code (889) Keyless go | |
| 3 | Open engine hood and raise to vertical position | AR88.40-P-1000T | |

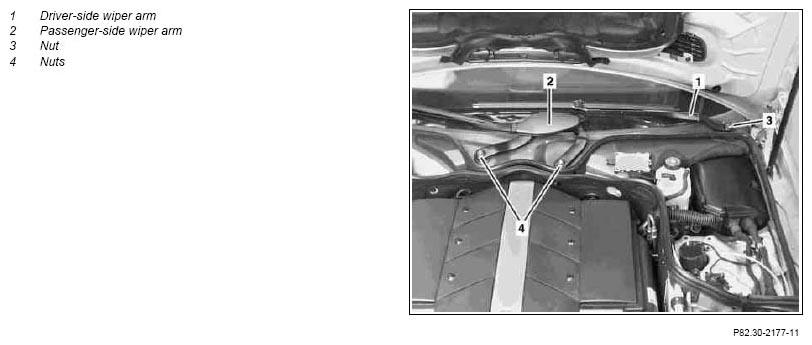

| 4 | Unscrew nut (3) on the driver-side wiper arm (1) | ||
| *BA82.30-P-1004-01A | |||
| Fig 2 | |||
| 5 | Remove driver-side wiper arm (1) | ||
| 6 | Unscrew nuts (4) on passenger side wiper arm (2) | ||
| *BA82.30-P-1004-01A | |||
| Fig 2 | |||
| 7 | Remove passenger-side wiper arm (2) | ||
| 8 | Install in the reverse order |
WINDSHIELD WIPER
| Number | Designation | Model 211.0 | Model 211.2 | Model 211.6 | |
|---|---|---|---|---|---|
| BA82.30-P-1004-01A | Nut on wiper arm | Nm | 19 | 19 | 19 |
