Replacing retaining clip - AR32.22-P-1500-02T

Always replace retaining clips in pairs.

1. Remove fragments of the retaining clip (1) from the centering hole (arrow) in the air spring (41).
2. Remove fragments of the retaining clip (1) from the pin (2).
3. Tap a new retaining clip (1) onto the pin (2) using a plastic mallet until the retaining clip (1) lies flat on the frame floor.

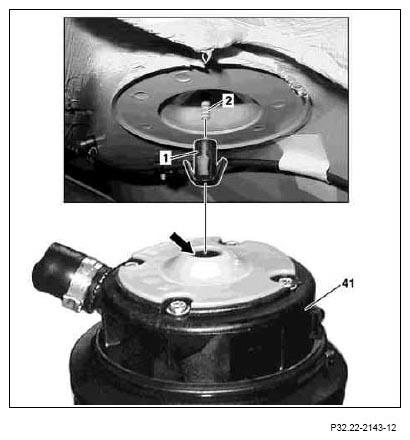

   Fig 1: Identifying Retaining Clip, Pin And Centering Hole In Air Spring

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
