Disconnect electrical connector - AR32.22-P-1500-01TH

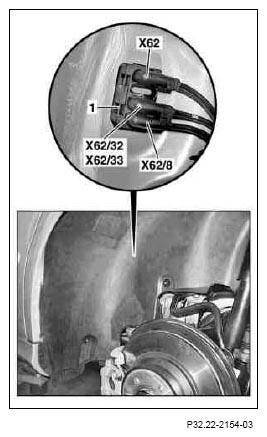

- Separate connector in the left rear wheelhouse, to do this, lever open spring detent (1) using screwdriver and open retaining tabs of cable duct:
- RPM sensor connector (signals) (X62).
- Rear axle multiple circuit junction connector, left (X62/32) of level sensor.
- Rear axle multiple circuit junction connector (X62/8) of left rear axle damping valve unit
- Unclip electrical feed line of the left AIRmatic valve unit from the retaining clamps on the rear axle and fasten to the left damper.
- Separate connector in the right rear wheelhouse, to do this, lever open spring detent (1) using screwdriver and open retaining tabs of cable duct:
- RPM sensor connector (signals) (X62).
- Right rear axle multiple circuit junction connector (X62/33) from brake pad contact sensor.
- Rear axle multiple circuit junction connector (X62/8) of right rear axle damping valve unit.
- Unclip electric feed line of right AIRmatic valve unit from retaining clamps on the rear axle and attach to the right damper.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

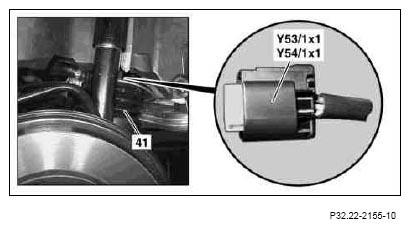

- Separate left and right rear suspension strut AIRmatic valve unit connectors (Y53/1x1, Y54/1x1) at left and right air springs (41).
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
