Pressure supply, function - GF32.22-P-4010E

MODEL 211 with CODE (489a) Airmatic (semi-active air suspension)

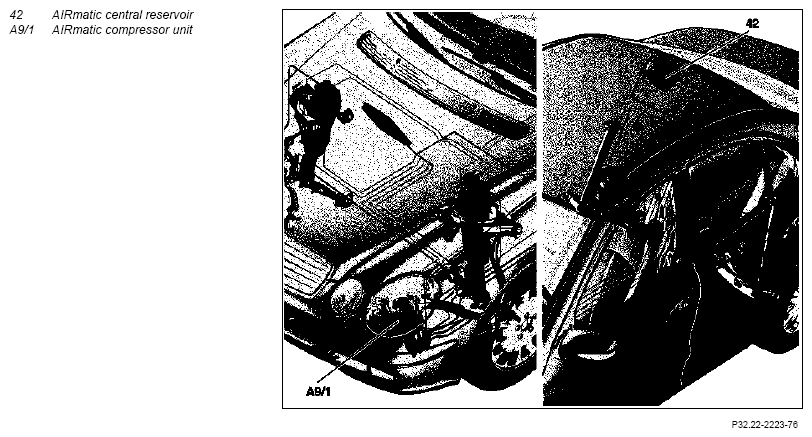

Fig 1: Locating AIRmatic Central Reservoir And AIRmatic Compressor Unit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

In normal operation, the AIRmatic works with a pressure of between 6 and 10 bar depending on the load.

An electric compressor is used to supply the pressure. This is installed in the AIRmatic compressor unit (A9/1).

In addition the system features a central reservoir (42) in which the compressed air is stored. The reservoir pressure is between 13 and 16 bar (at sea level).

The system is supplied with pressure either via the central reservoir, or via the air compressor.

Central reservoir, location / task / design / function	GF32.22-P-4800A
Compressor unit, location / task / design / function	GF32.22-P-4101B
AIRmatic control module with ADS, location / task / function	GF32.22-P-4200E
