Compressor unit, location - GF32.22-P-4101-01E

MODEL 211

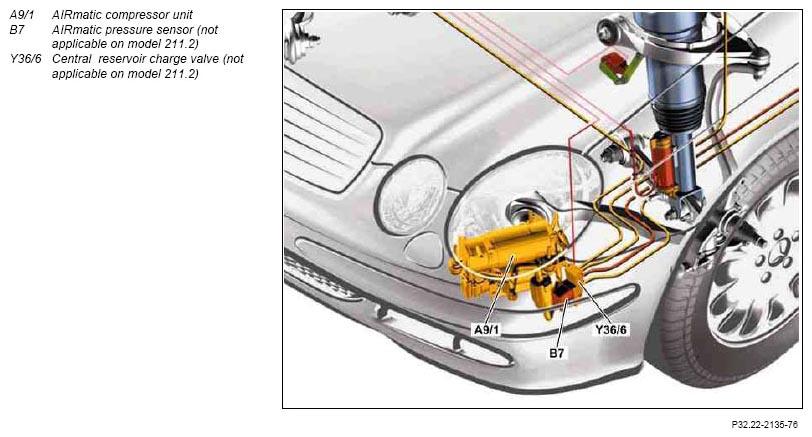

Fig 1: Locating AIRmatic Compressor Unit Components

G07506454

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
