Central reservoir, location / task / design / function - GF32.22-P-4800A

MODELS 211, 240 with CODE (489a) Airmatic (semi-active air suspension)

MODEL 220 except CODE (487a) Active body control (ABC)

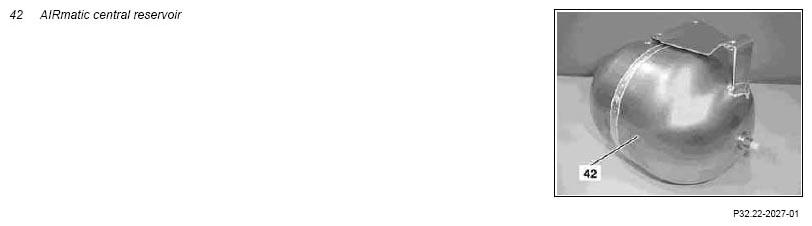

Fig 1: View Of AIRmatic Central Reservoir

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Central reservoir, location	Model 211	GF32.22-P-4800-01E
	Model 220	GF32.22-P-4800-01A
	Model 240	GF32.22-P-4800-01MB
Central reservoir, task	Stores compressed air for level control
Central reservoir, design	Metal compressed air reservoir
Central reservoir, function	Used for decoupling between compressor and level control
