Turn rack-and-pinion steering to center position, mount steering coupling - AR46.20-P-0600-01P

1. Turn rack-and-pinion steering to center position.

   Turn so that the marking on cap is in alignment with the marking on the control valve housing (arrows).

2. Mount steering coupling.

Shown on model 203

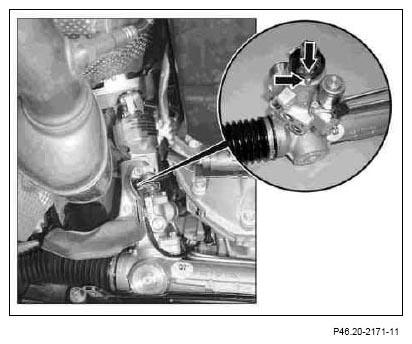

Fig 1: Identifying Rack-And-Pinion Steering Center Position (Model 203)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 220 with 4MATIC

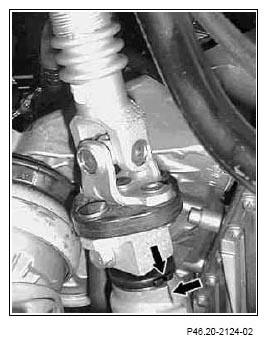

Fig 2: Identifying Rack-And-Pinion Steering Center Position (Model 220 With 4Matic)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211 with 4MATIC

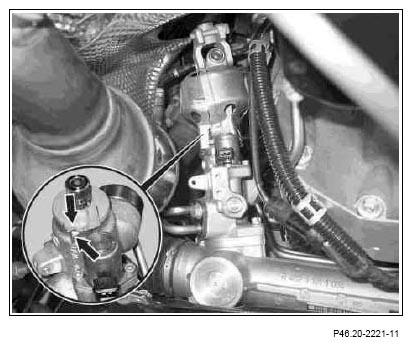

Fig 3: Identifying Rack-And-Pinion Steering Center Position (Model 211 With 4Matic)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
