Push the boot onto the steering gear housing and position - AR46.40-P-0400-02CW

Shown on steering gear, model 204

1. Push boot (1) onto steering gear housing (2).

   Model 204, 207, 212, 218: Slide on until the recesses (1a) are at the housing (2) of the steering gear.

2. Position boot (1).

   Model 204, 207 with diaphragm valve (1b):

   As shown in the picture the diaphragm valve (1b) must be located in the center of the marking (2m).

   Model 164, 171, 203, 209, 251:

   The diaphragm valve (1b) must point in the direction of travel. Model 211, 219:

   The diaphragm valve (1b) must point opposite to the direction of travel.

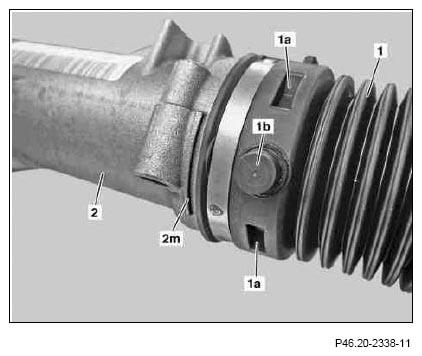

   Fig 1: Positioning Boot
