Remove/install front seat backrest seat-back lining - AR91.10-P-1910T

MODEL 211.0/2/6 up to 30.6.04

Driver seat

MODEL 211.0/2/6 up to 30.6.04 except CODE (842) Folding front passenger backrest (usable as table) Front passenger seat

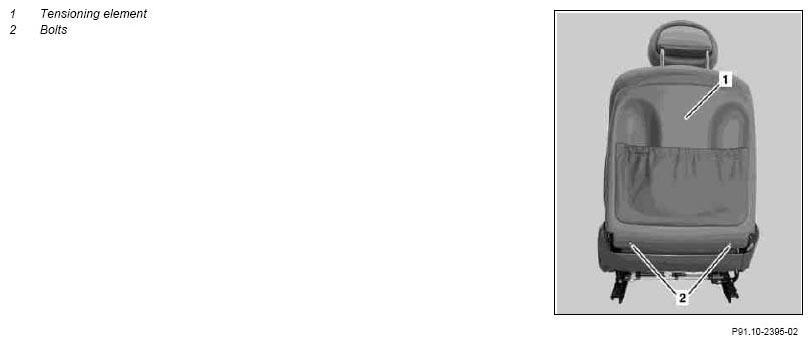

Fig 1: Identifying Front Seat Tensioning Element & Bolts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Adjust left or right front seat forward and move backrest into upright position
2.1	Unclip hand wheel of lumbar support using a mounting wedge	Only on front seat without code (404) Left multicontour seat or without code (405) Right multicontour seat or without code (433) Left dynamic seat, incl. multicontour seat or without code (434) Right dynamic seat, incl. multicontour seat
2.1	Unclip hand wheel of lumbar support using a mounting wedge		Figure
3	Unscrew bolts (2)
4	Slide seat-back lining (1) at the front seat backrest down and remove from guides	Remove seat-back lining (1) of front seat backrest carefully to prevent damage to guides on seat-back lining (1).
5	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
