Press on sleeve for tapered roller bearing cone on drive pinion - WF58.50-P-3531-03B

Shop-make press-on sleeve for tapered roller bearing cone for drive pinion as shown in drawing.

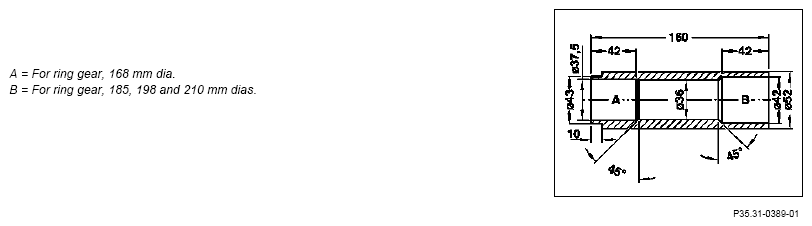

Fig 1: Identifying Press On Sleeve Dimensions
G07507992Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
