Bowden cable for trailer coupling release mechanism - WF58.50-P-3111-01M

Models 211, 215, 220, 221.

Fig 1: Identifying Resetting Device (000 589 52 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Set guide groove in accordance with specified dimensions in center of resetting device (1) and deburr it.

   When working with the resetting device (1), avoid any damage to the cable's plastic core.

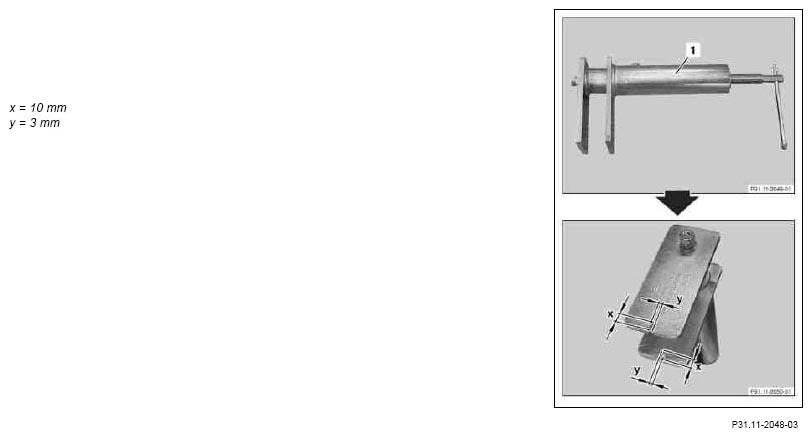

   Fig 2: Identifying Guide Groove Setting Dimensions

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

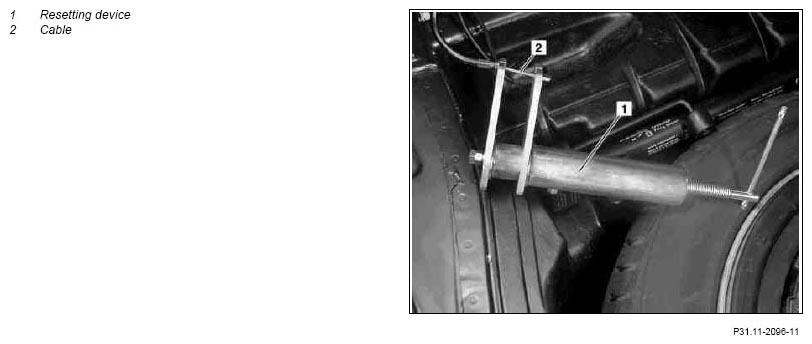

   Fig 3: Identifying Resetting Device & Cable

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
