Removing and installing combination switch - AR54.25-P-2800T

MODEL 211.0 /2 /6 Up to model year 04

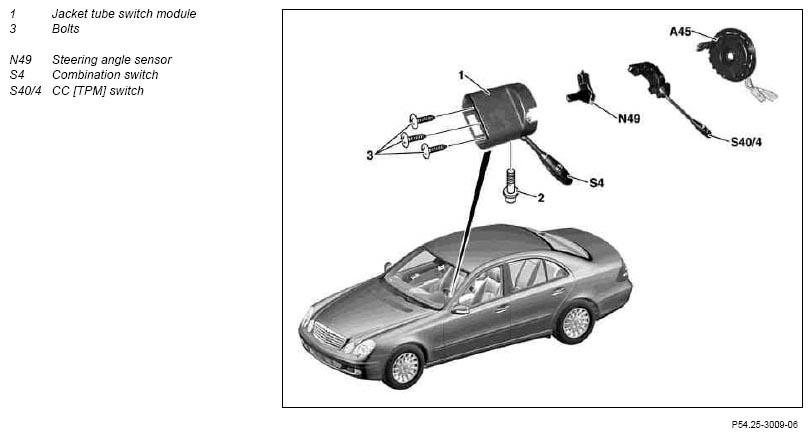

Fig 1: Identifying Combination Switch Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove cruise control switch (S40/4)	AR54.25-P-2803T
2	Remove steering angle sensor (N49)	AR46.10-P-0300T
3	Unscrew screws (3) and remove combination switch (S4) from the steering column tube switch module (1)
4	Install in the reverse order
5	Perform function check on combination switch (S4)
