Remove/install vehicle power supply control unit - AR54.21-P-0100T
MODEL 211.0 up to 31.5.06
MODIFICATION NOTES
| 10.8.05 | The operation step "Disconnect ground line of additional battery" is deleted | |
| Attach a cable bridge for bridging negative terminal of battery to vehicle ground has been added | 3rd stage |
| Remove | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove trunk floor covering from trunk. | ||
| 2 | Remove spare tire cover or spare tire well trim from the luggage compartment | ||

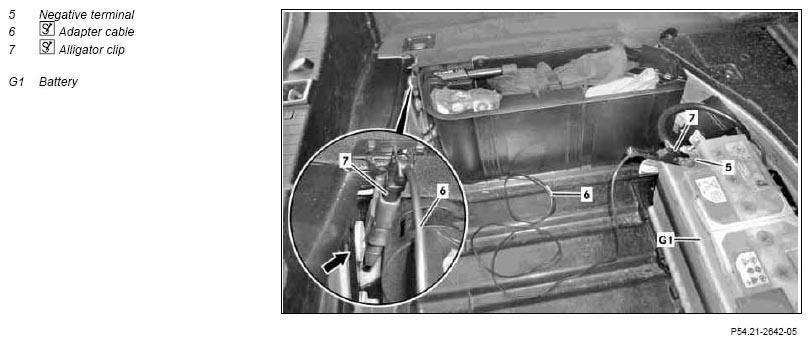

| 3 | Connect negative terminal (5) of battery (G1) to ground (circuit 31) using adapter line (6) (arrow) | ||
| Figure | |||

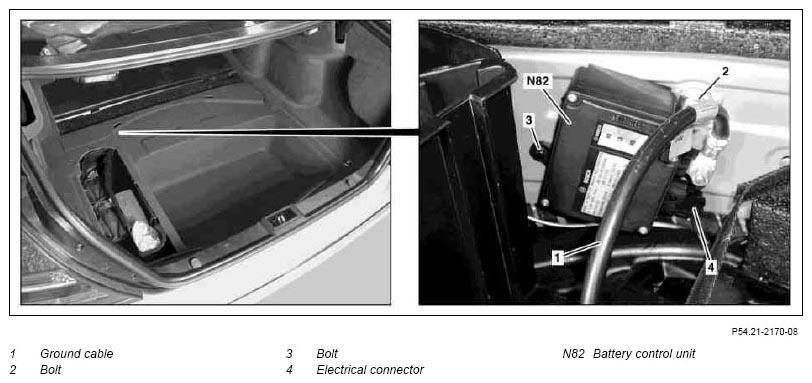

| 4 | Disconnect ground cable (1) from battery control unit (N82) | ||
| 5 | Unscrew bolt (2) | ||
| 6 | Unscrew bolt (3). | ||
| 7 | Unplug electrical connector (4) and remove battery control unit (N82) | ||
| Install | |||
| 8 | Position battery control unit (N82) at installation location and secure with bolt (3) | ||
| 9 | Tighten screw (2) | *BA54.10-P-1005-01C | |
| 10 | Fit ground line (1) to battery control unit (N82) | *BA54.10-P-1004-01C | |
| 11 | Remove adapter line (6) with alligator clips (7) | Figure | |
| 12 | Connect electrical connector (4) to battery control unit (N82) | ||
| 13 | Install spare tire cover or spare tire well trim | ||
| 14 | Insert luggage compartment cover in the luggage compartment |
BATTERY
| Number | Designation | Model 211 | ||
|---|---|---|---|---|
| BA54.10-P-1004-01C | Nut, ground lead to battery control unit | M8 | Nm | 12 |
| BA54.10-P-1005-01C | Bolt, battery control unit to body | M8 | Nm | 20 |
