Remove/install Parktronic system (PTS) warning indicator in rear passenger compartment - AR54.65-P-0007T
MODEL 211.0 /2 with CODE (220a) Parktronic System (PTS)

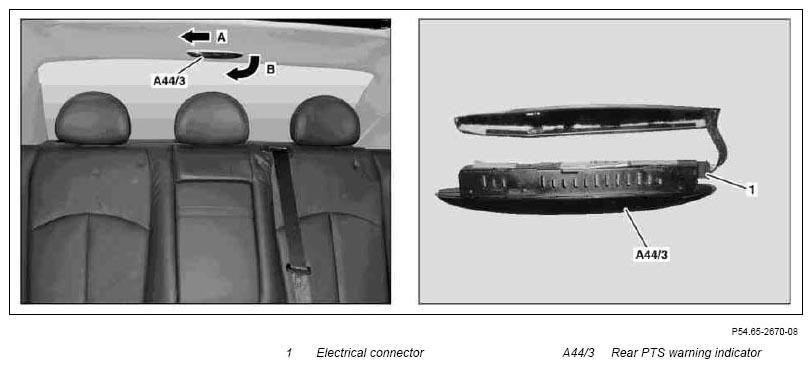

Shown on model 211.0
MODIFICATION NOTES
| 8.1.04 | Disconnect ground cable on battery, connect |
| Remove/Install | ||
| 1 | Push rear PTS warning indicator (A44/3) in the direction of the arrow (arrow A) and pull downwards at an angle (arrow B) out of the headliner until the electrical connector (1) is accessible | Installation: The rear PTS warning indicator (A44/3) must latch noticeably. |
| 2 | Disconnect electrical connector (1) and remove rear PTS warning indicator (A44/3) | |
| 3 | Install in the reverse order |
