Parktronic system (PTS), location of components - GF54.65-P-0001-02T

Shown on Model 211.0

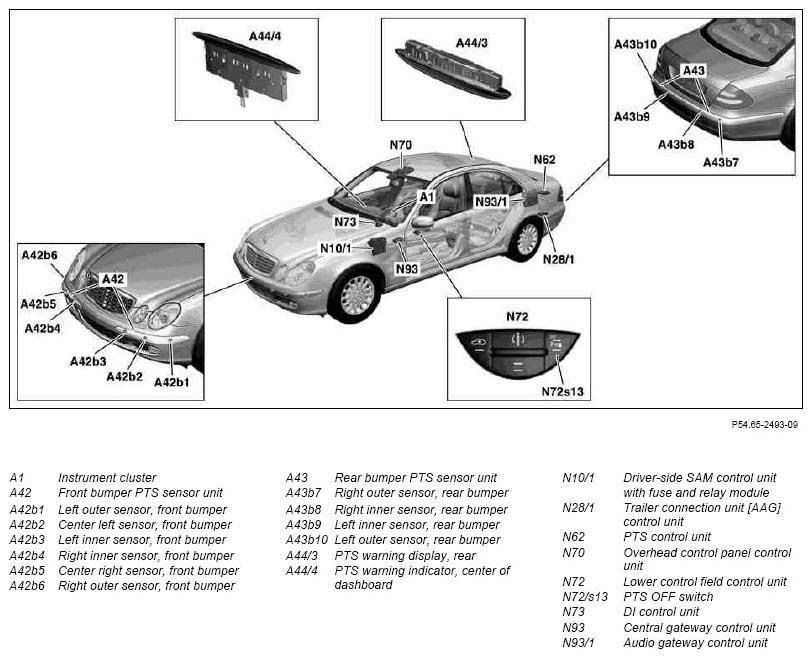

Fig 1: Locating Parktonic System Components

G07506201

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
