Instrument cluster (IC), operating information - GF54.30-P-0002-05TM

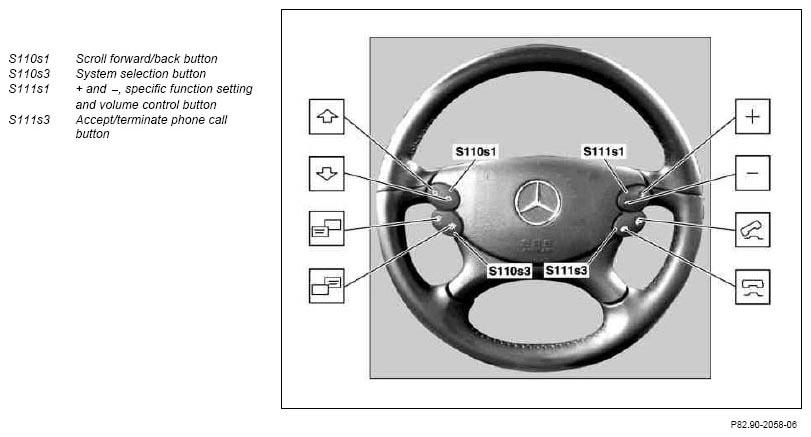

Multifunction steering wheel (MFL) controls
The displays in the multifunction display (A1p13) of the instrument cluster (A1) and the settings in the operating system can be controlled via the buttons on the multifunction steering wheel. The standard display always appears when the instrument cluster is activated. The system selection button is used to display the individual menus, the scroll forward/back button is used to display the submenus.
A submenu is selected with the button + and -, setting of specific functions and volume control. The scroll forward/back button is used to select a function within a submenu. The settings themselves are performed with the button + and -, setting of specific functions and volume control.
The display only shows systems and functions available in the particular vehicle. If a system is not present, it is "skipped" when the system selection button is pressed.
Confirm malfunction and warning messages
These messages are divided into 3 categories according to their priority. Messages of categories 2 and 3 in the multifunction display can be acknowledged by pressing the instrument illumination brightness control and reset button (A1r1) or the system selection button. Messages of category 1 (highest priority) cannot be acknowledged. Indicator or warning lamps that light up at the same time cannot be acknowledged.
Certain fault and warning messages are also accompanied by a chime. A signal always sounds when faults and warning messages are displayed.
The fault and warning messages are not stored in the fault memory.
Workshop level
The standard display switches to the workshop level if the instrument illumination brightness control and reset button is pressed 3 times in succession within 2 s. The scroll forward/back button is used to switch between the following submenus:
- On-board electrical system voltage display
- Instrument cluster data
- Dynamometer test mode
- Chassis number
- Service menu
Control system
The following table shows the structure of the possible menus and their submenus in the control system for the driver.
| Menu | Submenu 1st level | Submenu 2nd level |
|---|---|---|
| Standard display | Outside temperature Digital speedometer Tire pressure loss warning/tire pressure monitoring ASSYST PLUS Engine oil level (only with engine 629) |
|
| Audio | Radio channel CD player/CD changer |
|
| Navigation | Destination-oriented navigation | |
| DISTRONIC | Adjustment | |
| Fault and warning messages | Inquiry | |
| Settings | Reset to factory settings Instrument cluster |
Kilometer/miles switchover Language choice Status bar selection Standard display selection |
| Time / date | Hours setting (clock) Minutes setting (clock) Day setting (date) Month setting (date) Year setting (date) |
|
| Illumination | Permanent driving lights Ambient illumination Ambiance illumination Exterior lights OFF delay time Interior lights OFF delay time |
|
| Vehicle | Permanent SPEEDTRONIC (winter tire speed limiter) Automatic locking setting |
|
| Heater | Select switch-on time Change switch-on time |
|
| Comfort | Easy entry feature setting Park position for outside mirror setting Outside mirror fold-in setting |
|
| Dynamic multicontour seat | Driver or front passenger seat adaptation | |
| Trip computer | Consumption statistics since start Consumption statistics since last reset Reset consumption statistics Range, inquiry |
|
| Telephone | Enter PIN Search for name in telephone book Search for last dialed telephone number |
