Instrument cluster (IC), operating information - GF54.30-P-0002-05T

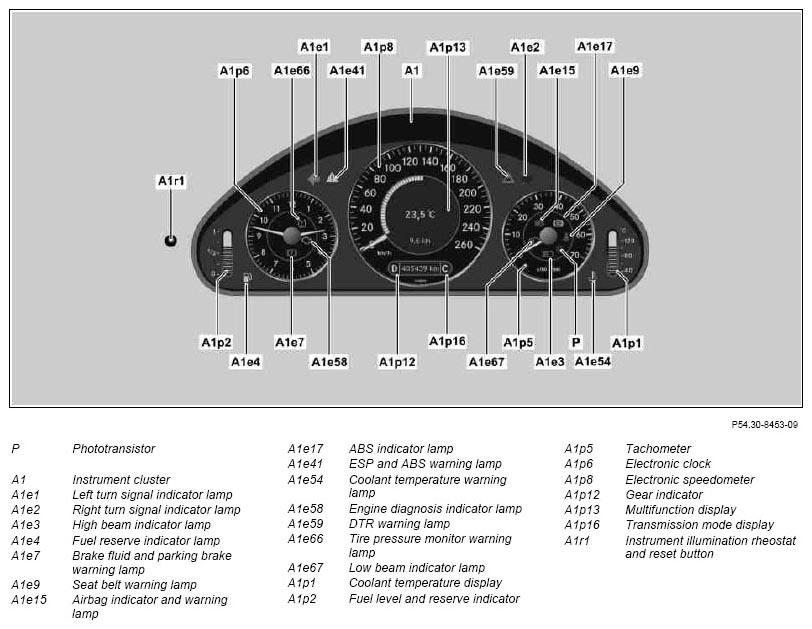

Fig 1: Identifying Instrument Cluster Indicators And Lamps (Up To 31.5.05)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated up to 31.5.05

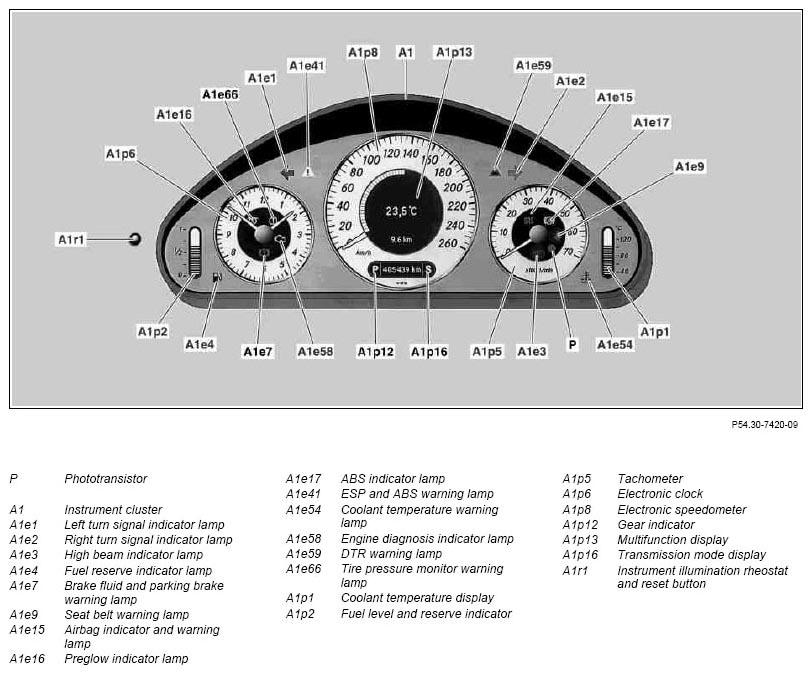

Fig 2: Identifying Instrument Cluster Indicators And Lamps (As Of 1.6.05)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown as of 1.6.05

Multifunction steering wheel (MFL), controls

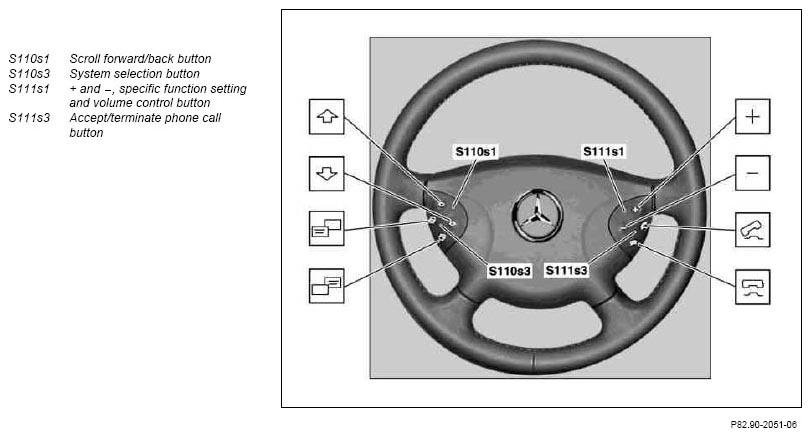

Fig 3: Identifying Multifunction Steering Wheel Controls

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

This document covers the following points:

Operating the multifunction display (A1p13)
Call display of different systems
Browse within a system
Individual settings
Change settings
Example: Switching over from degrees centigrade to degrees Fahrenheit (up to 31.5.05)
Recall the factory settings
Call stored fault and warning messages
Acknowledge fault and warning messages on the multifunction display (A1p13)
Set brightness of lighting
Switch on ESP rolling test

Operating the multifunction display (A1p13)

If the instrument cluster (A1) is activated, by opening the driver's door for example, the basic display of the basic system (trip odometer and total mileage, outside temperature) always appears on the multifunction display (A1p13).

Calling up display of different systems

Function requirements:

Circuit 15R ON
No undervoltage or overvoltage

If the system selection button (S110s3) on the multifunction steering wheel (MFL) is pressed, the multifunction display (A1p13) switches over to the basic display of the next system. Once the driver has scrolled through all systems the main screen of the base function appears again.

System selection via the multifunction steering wheel using the system selection button (S110s3)

Fig 4: Arrangement Of System Selection

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The illustration above shows the possible systems arranged in a circle. When the system selection button (S110s3) is pressed, the display always moves quickly on to the next system.

Scrolling within a system

Function requirements:

Circuit 15R ON
No undervoltage or overvoltage

In addition to the main screen, most systems also feature other screens. Scrolling within a system takes place via the scroll forward/back button (S110s1) (↑,↓). The display moves on further each time the scroll forward/back button (S110s1) (↑,↓) is pressed. The display scrolls either forwards or backwards depending on which portion of the scroll forward/back pushbutton (S110s1) the driver presses (↑,↓).

You can jump to another system from any screen by pressing the system selection button (S110s3). With the exception of the trip computer (RRE) the basic display of this system then appears. If a change is made from the previous system to the trip computer system, the display screen is always called up which was shown last with the trip computer (RRE) system.

The display only shows systems and functions available in the particular vehicle. If a system is not available, it is "skipped" by pressing the system selection button (S110s3).

Overview and sequence of Menu item "Settings"

Fig 5: Overview And Sequence Of Menu Item Settings

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Individual settings

Function requirements:

Circuit 15R ON
No undervoltage or overvoltage

The "Settings" function allows the driver to change various presets. Various settings can be performed in the instrument cluster (A1), e.g. setting the time (hours and minutes).

The time cannot be set if one of the following codes is available:

with code (494) USA version
with CODE (498) Japanese version
with code (352) COMAND operating and display system
with code (527) COMAND APS (with navigation)

The time is set automatically with the help of satellites on vehicles with the above codes.

Press the system selection button (S110s3) until the menu "Settings... reset: press reset button for 3 seconds" appears on the multifunction display (A1p13). via the scroll forward/back button (S110s1)

(↑,↓) Go to the menu item settings. The desired menu item is selected via the + and button, adjustment of specific functions and volume control (S111s1).

The following settings are possible, for example:

Automatic door locking (ON/OFF)
Winter tire speed limit (160 km/h up to 210 km/h or Off)
Driving light switching (manual driving light, automatic driving light
Ambient illumination function
Headlamp delayed switch-off (0 s/15 s/30 s/45 s/60 s) (up to 31.5.05) (ON/OFF) (ON = 15 s) (as of 1.6.05)
Locator lighting (AFB)
"Ambient" light
Interior light courtesy delay (0 s/5 s/10 s/15 s/20 s) (up to 31.5.05) (ON/OFF) (ON = 10 s) (as of 1.6.05)
Station search (frequency/memory)
Stationary heater activation time
Activate entry aid (OFF/steering column/steering column and seat) (up to 31.5.05) (OFF/steering column) (as of 1.6.05)
Parking assist mirror adjustment (ON/OFF)
Folding mirror, in/out
(ON/OFF) (up to 31.5.05)

(USA = ON, except USA = OFF) (as of 1.6.05)

Overview and sequence of settings for the menu item "Instrument cluster"

Fig 6: Overview And Sequence Of Settings For Menu Item Instrument Cluster

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Change setting in menu item "Instrument Cluster"

Press the system selection button (S110s3) until the "settings" function appears on the multifunction display (A1p13), go to the corresponding menu item using the scroll forward/back button (S110s1) (↑,↓). Press the button + and -, setting of specific functions and volume control (S111s1) towards (+) or (-) until the desired menu item is active on the multifunction display (A1p13). Press the scroll forward/back button (S110s1) (↑,↓) until the display of the setting to be changed appears on the multifunction display (A1p13). Press the + and -, specific function setting and volume control button (S111s1) in either the "+" or "-" direction until the value you require is displayed on the multifunction display. A1p13 The activated value becomes effective immediately.

Temperature display (up to 31.5.05)

You can switch the outside temperature display between degrees Centigrade and degrees Fahrenheit. The instrument cluster (A1) also sends a message for the air conditioning on the class B (interior) controller area network bus (CAN-B).

As of 1.6.05 the temperature display is established via variant coding in the central gateway control unit (N93).

Text/language

The language in which the texts appear in the instrument cluster (A1) can be selected here. The instrument cluster (A1) also places a corresponding message on CAN-B. The voice setting on the "radio" does not have an effect on the voice setting in the instrument cluster (A1).

Speedometer

You can switch the tachometer between miles and kilometers per hour. This changeover also affects the display of the trip computer integrated into the instrument cluster (A1). The instrument cluster (A1) sends a message on the class C (engine compartment) controller area network bus (CAN-C).

Overview and sequence of settings in the menu item "Illumination"

Fig 7: Overview And Sequence Of Settings In Menu Item Illumination

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Change setting in the menu item "Illumination"

Press the scroll forward/back button (S110s1) (↑,↓) until the display of the setting to be changed appears on the multifunction display (A1p13). Press the + and -, specific function setting and volume control button (S111s1) in either the "+" or "-" direction until the value you require is displayed on the multifunction display. A1p13 The activated value becomes effective immediately.

Overview and sequence of settings in the menu item "Vehicle"

Fig 8: Overview And Sequence Of Settings In Menu Item Vehicle

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Change setting in the menu item "Vehicle"

Overview and sequence of settings in the menu item "Comfort"

Fig 9: Overview And Sequence Of Settings In Menu Item Comfort

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Change setting in menu item "Comfort"

Press the system selection button (S110s3) until the "Settings" function appears on the multifunction display (A1p13), go to the corresponding menu item using the scroll forward/back button (S110s1) (↑,↓). Press pushbutton + and -, setting specific functions and volume control (S111s1) in the (+) or (-) direction until the desired menu item "Comfort" is active on the multifunction display (A1p13), Press the scroll forward/back button (S110s1) (↑,↓) until the display of the setting to be changed appears on the multifunction display (A1p13). Press the + and -, specific function setting and volume control button (S111s1) in either the "+" or "-" direction until the value you require is displayed on the multifunction display. A1p13 The activated value becomes effective immediately.

Settings are selectable regardless of the vehicle speed.

Example: Switching over from degrees Centigrade to degrees Fahrenheit (up to 31.5.05)

Press the system selection button (S110s3) until the "settings" function appears on the multifunction display (A1p13), go to the corresponding menu item using the scroll forward/back button (S110s1) (↑,↓). Press the button + and -, setting of specific functions and volume control (S111s1) towards (+) or (-) until the desired menu item "Instrument cluster" is active on the multifunction display (A1p13). Press the scroll forward/back button (S110s1) (↑,↓) until the display "TEMPERATURE DISPLAY" appears on the multifunction display (A1p13). Press the button + and -, setting of specific functions and volume control (S111s1) towards (-) on the right-hand side of the steering wheel so that Fahrenheit is now active on the multifunction display (A1p13). The setting becomes effective immediately.

As of 1.6.05 it is no longer possible for the user to change over from degrees Centigrade to degrees Fahrenheit.

Recalling the factory settings

All the possible settings are erased and the manufacturer default setting reproduced by a "Reset".

Carry out reset

Press the system selection button (S110s3) until the "SETTINGS" function appears on the multifunction display (A1p13). Operate the instrument lighting dimmer and reset button (A1r1) for at least 3 s. "RESET SETTINGS, CONFIRMATION WITH RESET BUTTON" appears on the multifunction display (A1p13). Operate the instrument lighting dimmer and reset button (A1r1) once more within 5 s, all the settings are now reset to the factory setting. "RESET TO MANUFACTURER SETTING" appears on the multifunction display (A1p13). If the instrument illumination rheostat and reset button (A1r1) is not pressed within this 5 s, the display switches back to the basic display. The settings are not then reset.

If a reset is performed while driving, the setting menu "Driving lights on" in the "Illumination" menu and the setting menu "Speed limit (winter tires) in the "Vehicle" menu are not reset for safety reasons. The message "NOT ALL SETTINGS RESET TO DEFAULTS WHILE DRIVING" appears.

Calling stored fault and warning messages

When the instrument cluster (A1) is active, you can scroll though the saved messages:

Press the system selection button (S110s3) until the display "MESSAGES" appears on the multifunction display (A1p13) (as of 1.6.05)
Press the system selection button (S110s3) until the display "MESSAGES" appears on the multifunction display (A1p13) (as of 1.6.05)
Use the button + and -, setting of specific functions and volume control (S111s1) to scroll through the fault messages. The messages are displayed in the order in which they were acknowledged.

Acknowledging fault and warning messages

These messages are divided into 3 categories according to their priority. Messages in categories 2 and 3 on the multifunction display (A1p13) can be acknowledges by pressing the Instrument illumination rheostat and reset button (A1r1) as well as with the system selection button (S110s3) of the multifunction steering wheel and then stored in the fault memory. On the other hand messages in category 1 (top priority) cannot be acknowledged. Indicator or warning lamps that light up at the same time cannot be acknowledged.

Certain fault and warning messages are also accompanied by a chime. A signal always sounds when faults and warning messages are displayed. For example "close trunk lid" belongs to the fault messages and warning messages.

The fault messages and warning messages are not stored in the fault memory.

Setting illumination brightness

Using the instrument illumination rheostat and reset button (A1r1) the brightness of the illumination of the instrument cluster (A1) as well as the controls and switch illumination can be adapted to the individual needs:

Turning to the right → brighter
Turn to the left → dimmer

Switch on ESP rolling test

Function prerequisites:

Circuit 15R ON
No undervoltage or overvoltage

In the rolling test, the rotational speeds of the driven axle are mirrored on the non-driven axle. To do this:

Adjust the standard display (basic condition with current total mileage and trip odometer and outside temperature).
Keep the instrument illumination rheostat and reset button (A1r1) pressed for approx. 20 s to 30 s or 3 times within 2.5 s until the beep is audible.
Press the scroll forward/back button (S110s1) once in the (↑) direction. The rolling test display appears.
Switch on rolling test using the + and -, specific function setting and volume control button (S111s1).

The dynamometer test remains active, even if "circuit 15R ON" has been switched off in the meantime until it is switched off with the button + and -, setting of specific functions and volume control (S111s1).
