Routing and connecting wiring harness - AZ54.65-P-0001-06T

Prepare parking assist wiring harness (25) as shown in the diagram and route in the vehicle.

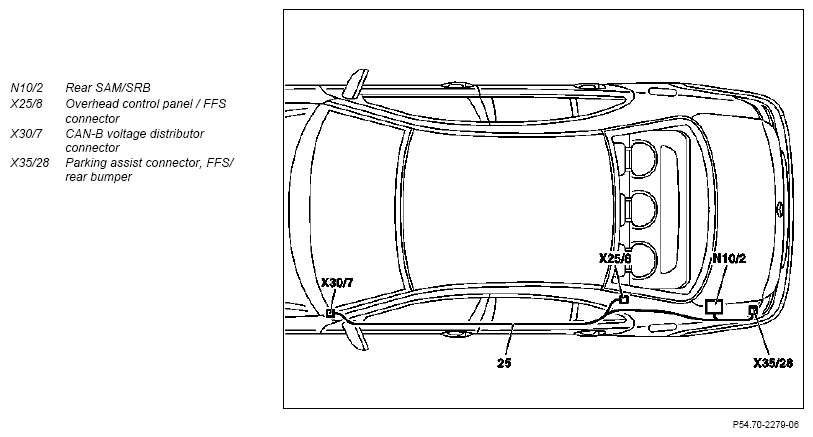

Fig 1: Routing Parking Assist Wiring Harness
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Connect parking assist wiring harness (25) to plug position 17 (arrow) in rear SAM/SRB (N10/2) in left side of trunk.
Connect parking assist wiring harness (25) to parking assist connector on FFS/rear bumper (X35/28).

Fig 2: Identifying Parking Assist Wiring Harness, Rear SAM/SRB And FFS/Rear Bumper
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Route parking assist wiring harness (25) through the left-hand cable duct in the rear wall to the overhead control panel/FFS connector (X25/8) and connect warning element wiring harness (22).
Fasten wiring harnesses with cable straps.

Fig 3: Identifying Parking Assist Wiring Harness And Overhead Control Panel/FFS Connector
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Route parking assist wiring harness (25) in left-hand cable duct to the area of the left A-pillar.
Unclip CAN-B voltage distributor connector (X30/7) from cable duct and unlock.
Connect branch-off line from parking assist wiring harness (25) to voltage distributor (X30/7).
Lock voltage distributor and clip into cable duct.

Fig 4: Identifying CAN-B Voltage Distributor Connector And Parking Assist Wiring Harness
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
