Installing display instrument - AZ54.65-P-0001-05T

Place backing plate (20) in the center of the prestamped recess at the rear of the headliner from above, mark the internal dimensions and cut out carefully.

Fig 1: Identifying Backing Plate Dimensions
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Place backing plate (20) on the cutout from above. Clip bracket (21) into backing plate (20) from below.

Fig 2: Identifying Backing Plate And Clip Bracket
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Push rear warning element (A44/3) into bracket (21) from below with the connecting coupling pointing to the left, and lock by pushing towards the left side.

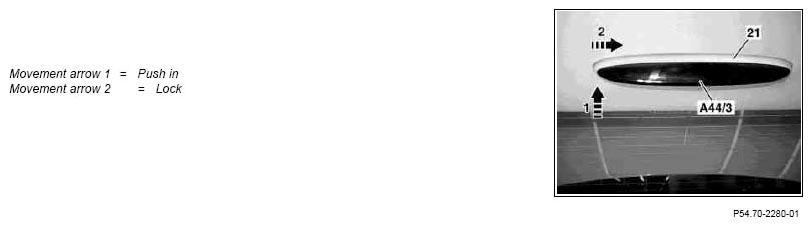

Fig 3: Pushing Rear Warning Element Into Bracket
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Connect warning element wiring harness (22) and attach to headliner with adhesive felt tape as shown in the diagram.

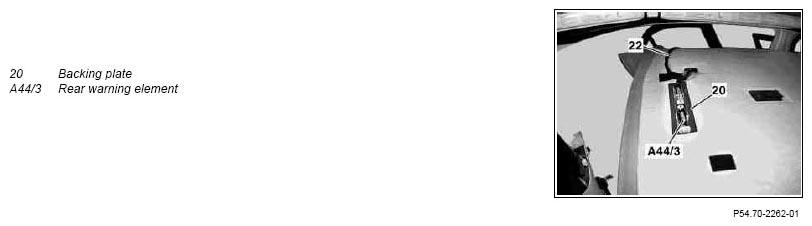

Fig 4: Identifying Backing Plate, Rear Warning Element And Warning Element Wiring Harness
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Route warning element wiring harness (22) along existing cable on left side of headliner and fasten.
After installing the headliner, the cables should be routed on the C-pillar behind the antenna amplifier.

Fig 5: Routing Warning Element Wiring Harness
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Route warning element wiring harness (22) with overhead control panel/frame floor system connector (X25/8) to the rear wall beside the left rear door.

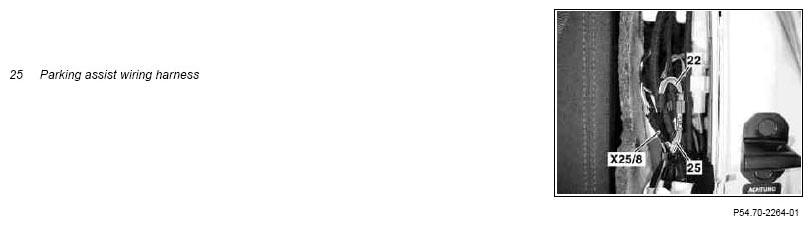

Fig 6: Identifying Warning Element Wiring Harness And Overhead Control Panel/Frame Floor System Connector
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
