Cavity preservation following repair work - AR97.20-P-1500T

MODEL 211

Engine hood area

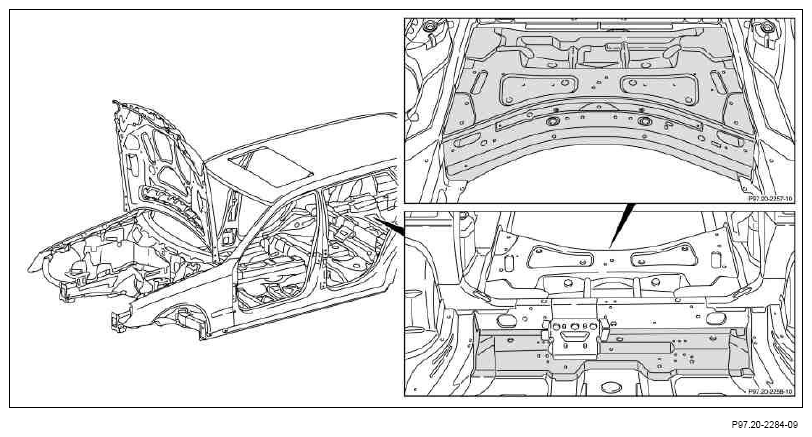

Fig 1: Identifying Engine Hood Cavity Preservation Area

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Front End, Left And Right Front Wheel Well Cavity Preservation Area

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Front end and left and right front wheel well area

Inner front longitudinal member/engine compartment (left and right) area

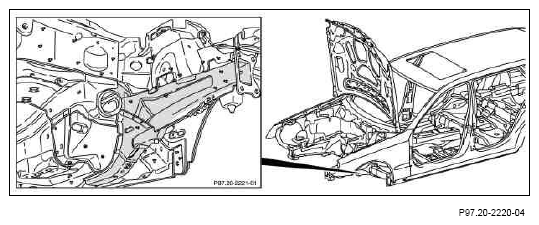

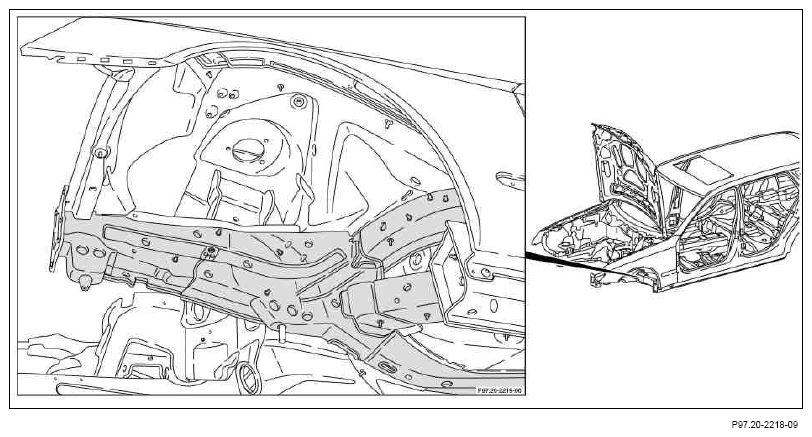

Fig 3: Identifying Inner Front Longitudinal Member/Engine Compartment (Left And Right) Cavity Preservation Area

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

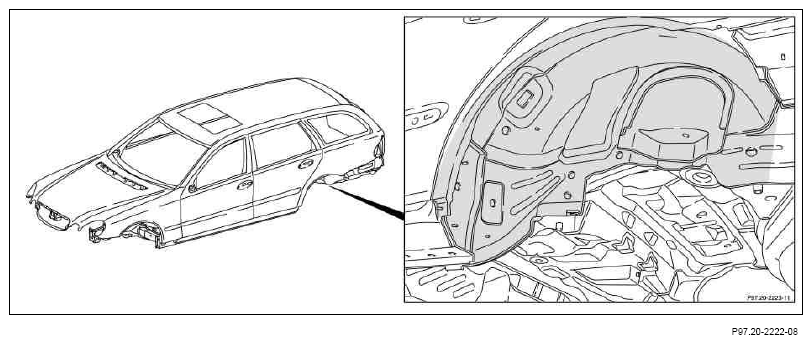

Fig 4: Identifying Complete Left/Right Rear Wheel Well Area Cavity Preservation Area

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Complete left and right rear wheel well area, shown on model 211.2

Fig 5: Identifying Cross Member Above Rear Axle Cavity Preservation Area

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Cross member above rear axle area, shown on model 211.2

Rear bottom cross member and longitudinal member area

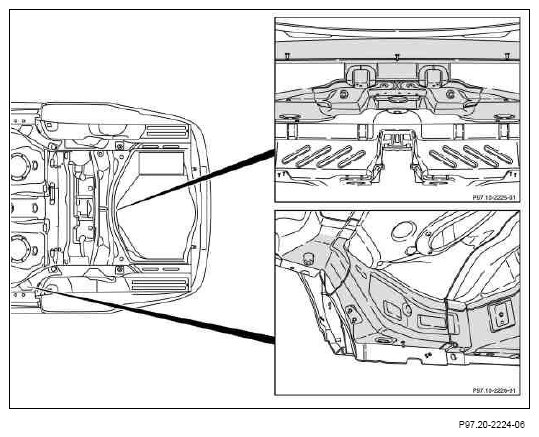

Fig 6: Identifying Rear Bottom Cross Member And Longitudinal Member Cavity Preservation Area

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Rear fender and left rear end area, shown on model 211.2

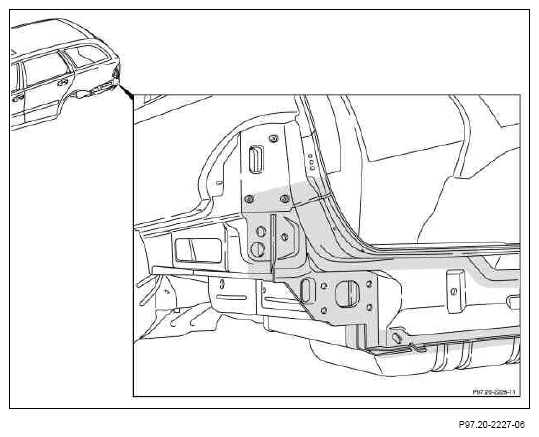

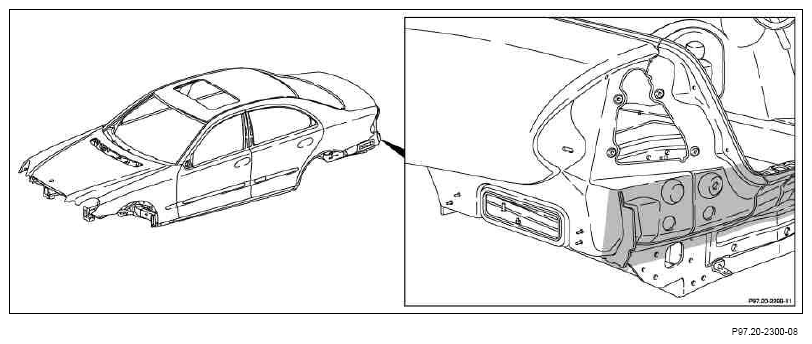

Fig 7: Identifying Rear Fender And Left Rear End Cavity Preservation Area - Model 211.2

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 8: Identifying Rear Fender And Left Rear End Cavity Preservation Area - Model 211.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Rear fender and left rear end area, shown on model 211.0

Driver and rear door area

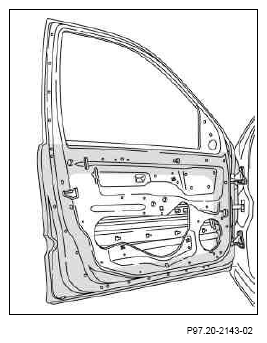

Fig 9: Identifying Driver Door Cavity Preservation Area

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

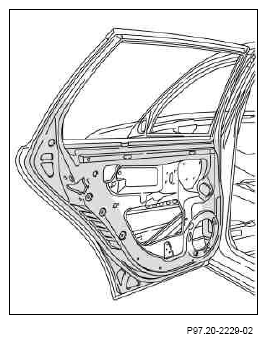

Fig 10: Identifying Rear Door Cavity Preservation Area

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Area of tailgate, shown on model 211.2

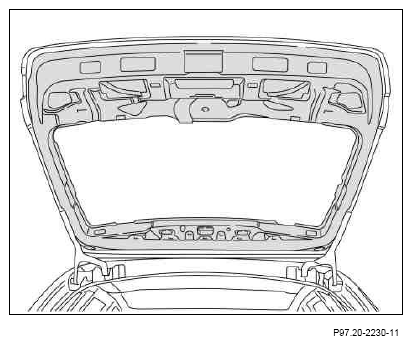

Fig 11: Identifying Tailgate Cavity Preservation Area

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Trunk lid area, shown on model 211.0

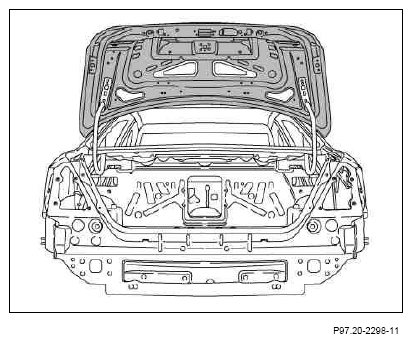

Fig 12: Identifying Trunk Lid Cavity Preservation Area

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

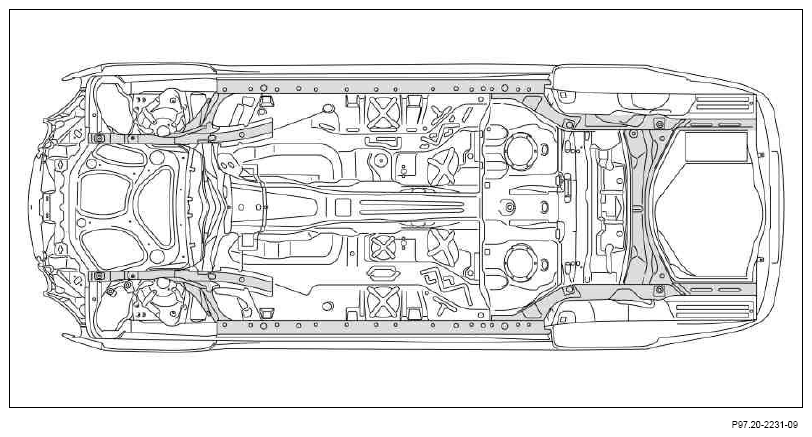

Fig 13: Identifying Underbody Cavity Preservation Area

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Underbody area

	Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when handling anticorrosion agents.	Never spray anticorrosion agents on flames or glowing hot objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
	Notes on cavity preservation	Model 124, 126, 129, 140, 168, 169, 170, 171, 201, 202, 203, 208, 209, 210, 211, 215, 219, 220, 230, 240, 463, 639, 671, 690.6, 901, 902, 903, 904, 905 Model WD1, WD2, WD3, WD6, WD7, XD1, XD2, XD3, XD4, XD5, XD6, XD7, YD1, YD2, YD3, YD4, YD5, YD6, YD7	AH97.20-P-0001-01B
1	Perform repair preservation	Apply cavity preservation agent in marked areas, from inside, only after completing sealing and paintwork, however, before assembly work. Apply repair preservation agent twice after a drying time of 5 minutes in between. The spraying hose should be stiff and the nozzles should spray at angle to the front and rear. The cavities should be dry. Insert spray hoses as far as possible into cavities. Spray while inserting and pulling out slowly.
	Processing instructions for cavity preservation agent		AP97.20-P-0640-01A
	Cavity protection, general		GF98.00-P-2045A
		Cavity preservation gun HRS no. 11072, see GOTIS http://gotis.aftersales.mercedes-benz.com MB cavity wax preservation, 1 l	*BR00.45-Z-1003-05A
2	Remove cavity sealant from drain holes	The processing temperature should not be less than 15 °C. Additional preservation measures may be required, depending on the repair area, deviating from the standard cavity preservation shown.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05
