Shape body flange for taillamp with embossing tool - AR63.50-P-1400-09CW

Fig 1: Identifying Embossing Tool (164 589 00 39 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

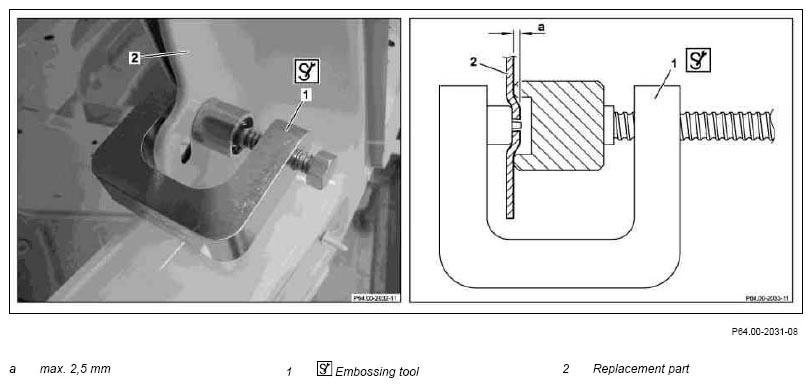

Fig 2: Positioning Embossing Tool On Mating Surface For Tail Lamp

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Dimensions:

1. Install taillamp, check gap dimensions and determine embossing depth of mating surfaces.
2. Remove taillamp and insert embossing tool (1).
3. Position embossing tool (1) on mating surface for taillamp by turning threaded spindle

   Ensure that embossing tool (1) is installed correctly.

4. Turn threaded spindle on embossing tool (1) until required embossment on mating surface for taillamp on replacement part (2) is reached.
5. Remove embossing tool (1).
