Prepare rear outer wheelhouse for installation - AR63.10-P-0670-05T
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-02A | Hole punching pliers, dia. 7 mm |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 RPM) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

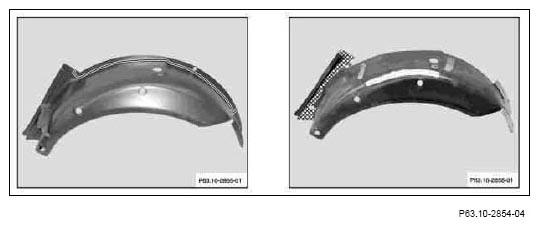

- Fit rear outer wheelhouse, mark separation point and separate spot welding flange.

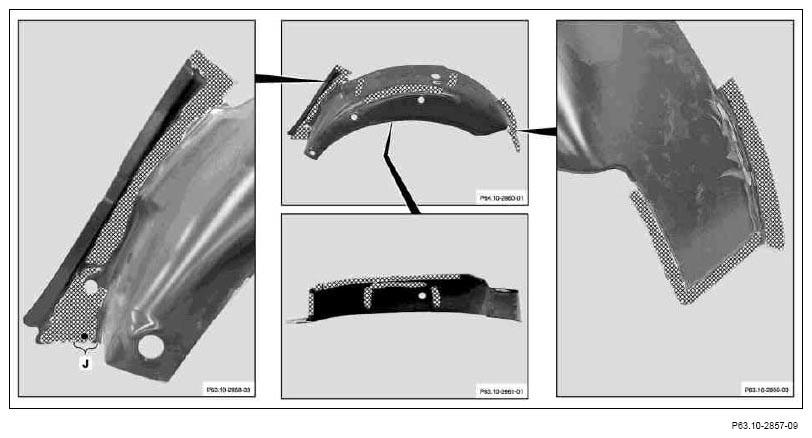

- Punch 7 mm dia. hole (area J).
- Then grind connection surfaces to bare metal in checked areas. Sand spot welding flanges to bare metal on both sides
- Coat insides of spot welding flanges with zinc dust paint.
