Prepare outer side longitudinal member - AR63.30-P-1050-02T
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

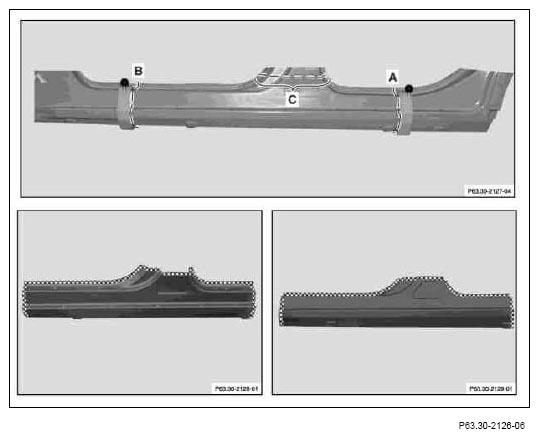

- Mark separation points with cutting templates and separate (areas A and B).
- Mark separation point and cut (area C).
Separation point approx. 50 mm parallel to replacement part cutting point.
- Grind connection surfaces down to bare metal in shaded areas. Sand spot weld flanges to bare metal on both sides
- Coat insides of spot weld flanges with zinc dust paint.
