Install main floor rear section - AR63.40-P-1180-18T

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1041-01A	Seam sealant, sprayable 310 ml	A 002 989 84 20
BR00.45-Z-1003-01A	Sealant, white, 310 ml, DB supply specification 6069.20	A 001 989 63 20
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05
BR00.45-Z-1001-13A	Blind rivet 6.4x14	A 003 990 35 97

Install main floor rear section, console and cross member, fit and fasten with clamping pliers.
Dimension z = approx. 575 mm.
Drill dia. 6.5 mm rivet holes (areas E, F, H, I, J and K).

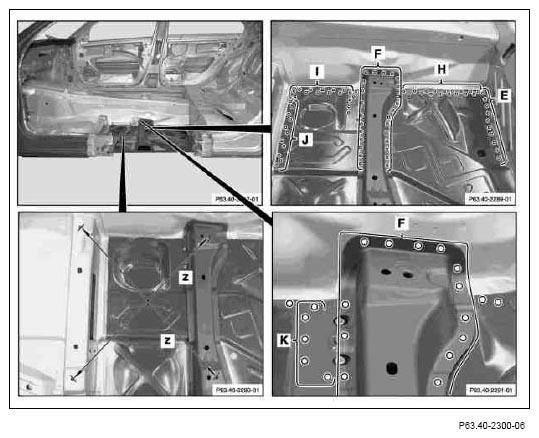

Fig 1: Locating Rivet Holes (Areas E, F, H, I, J And K)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove cross member.
Deburr rivet holes on both sides
Drill dia. 6.5 mm rivet holes (areas L and M).
Remove main floor rear section and console.
Deburr rivet holes on both sides

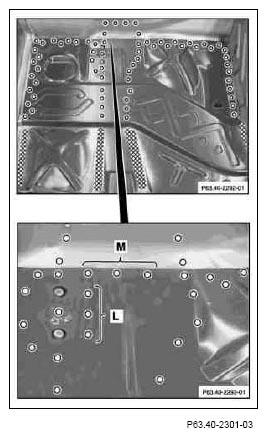

Fig 2: Locating Rivet Holes (Areas L And M)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

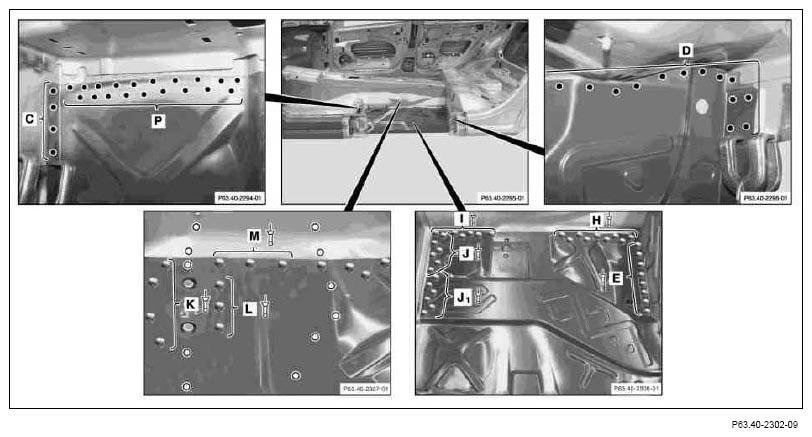

Fig 3: Locating Rivets (Areas E, H, I, J, J1, K, L And M) & Welds (Areas C, D & P)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Install main floor rear section and console and fasten with clamping pliers and screw-on clamping grippers.
Rivet console and main floor with Polygrip flat head rivets Ø 6.4 x 14 mm (areas E, H, I, J J1, K, L and M).
Rivet from bottom in area J1
Weld in main floor with (areas C, D and P).
Apply MB body sealant (area Q).

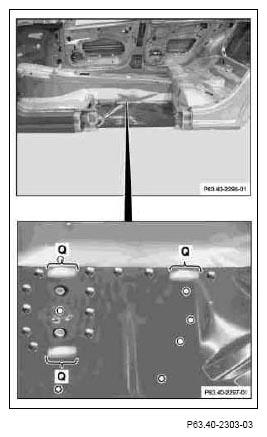

Fig 4: Locating MB Body Sealant (Area Q)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

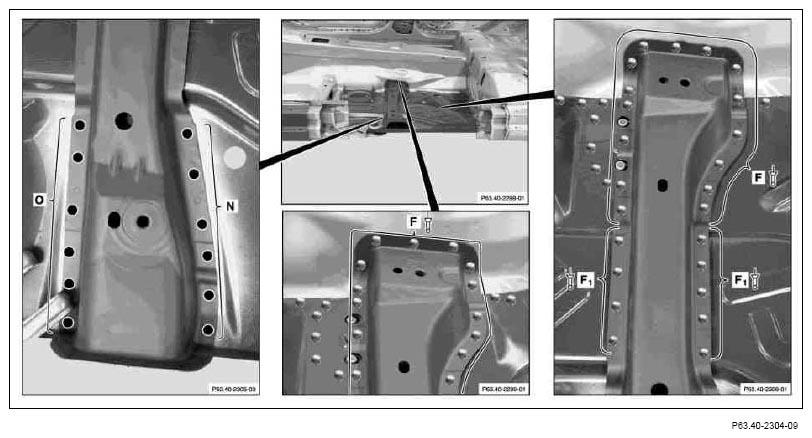

Fig 5: Locating Cross Member And Main Floor Polygrip Flat Head Rivets (Area F And F1) & Welds (Areas N & O)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Install cross member and fasten with clamping pliers and screw-on clamping grippers.
Rivet cross member and main floor with Polygrip flat head rivets Ø 6.4 x 14 mm (area F and F1).
Rivet from bottom in area F1.
Weld in cross member and main floor with (areas N and O).
Seal all areas overlapping in addition.
