Install rear roof frame - AR65.20-P-1008-03Y
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-01A | Electrode miller |
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 RPM) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-02A | Inert gas welder |
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |

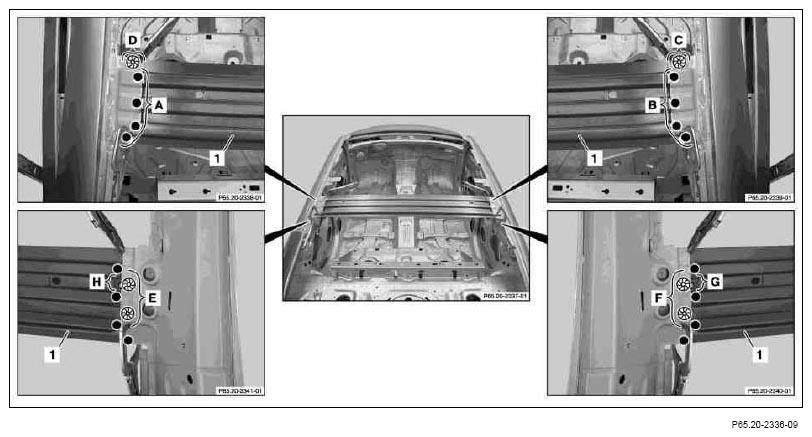

Shown on model 219
- Install rear roof frame (1), fit and fasten with
clamping pliers.
- Weld in rear roof frame (1) with
(areas A and B).
- Drill pilot holes in rear roof frame (1) (areas C and D).
- Weld in rear roof frame (1) with
(areas C, D, E, and F).
- Bend over sheet metal lugs on rear roof frame (1) (areas G and H).
- Clean welds with
- Remove grinding and drill shavings with wet/dry vacuum cleaner.
