Install and weld center roof paneling - AR65.10-P-1000-04T

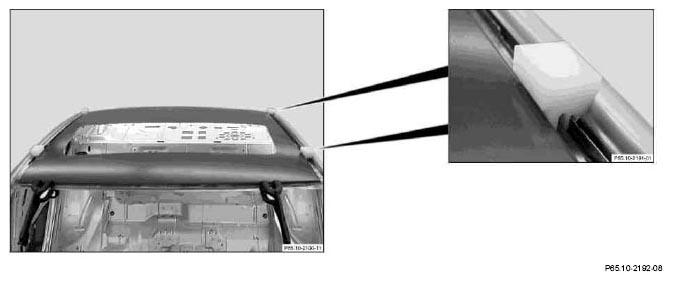

Fig 1: Identifying Spacer Blocks (211 589 04 23 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	Sealant, white, 310 ml, DB supply specification 6069.20	A 001 989 63 20
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05

Fig 2: Aligning Roof Paneling

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Install and attach roof paneling.
Align using spacer blocks and attach using clamping pliers.

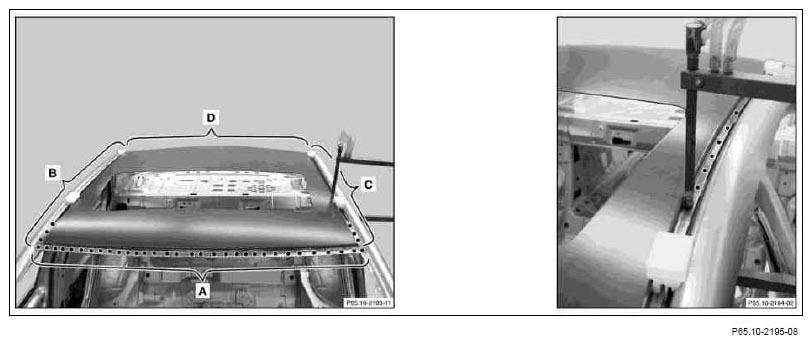

Fig 3: Welding In Roof Paneling (Areas A To D)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Weld in roof paneling with (areas A to D).
Weld in roof paneling with (areas E to J).
Clean welds with wire brush.

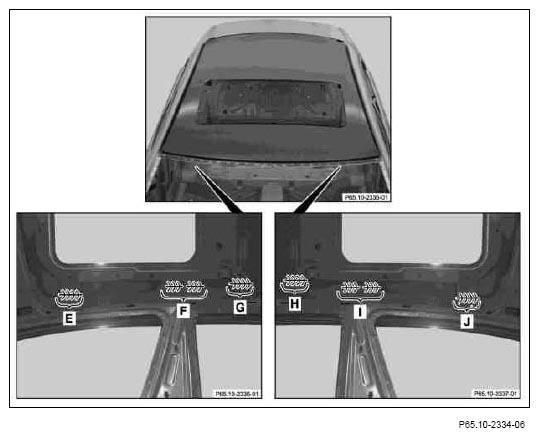

Fig 4: Identifying Roof Paneling Areas E To J
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
