Prepare wheelhouse paneling front section - AR62.20-P-1280-04T

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A

Drill (electric/pneumatic)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

Sand down connection surfaces to bare metal in the shaded areas.
Sand down spot weld flanges to bare metal on both sides.

Do not sand down area F to bare metal on right wheelhouse front section.
Coat insides of spot weld flanges with zinc dust paint.

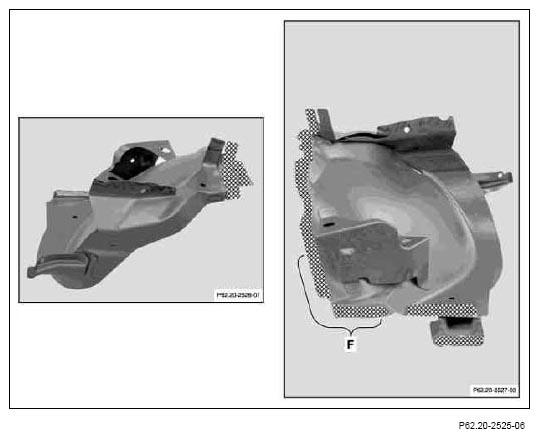

Fig 1: Locating Right Wheelhouse Front Section Area F
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
