Cutting out wheelhouse on engine compartment side - AR62.20-P-1200-03T

Fig 1: Identifying Weld Spot Miller (201 589 00 51 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-01A	Ball cutter, dia. 12 mm
WH58.30-Z-1006-01A	Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1002-03A	Straight grinder (electric/pneumatic)

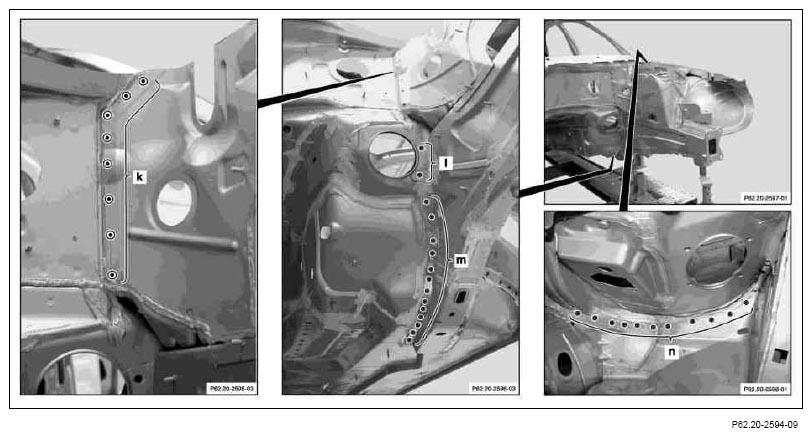

Fig 2: Locating Spot Welds (Areas K, L, M And N)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Expose spot welds and cut out with spot weld cutter (areas k, l, m and n).
2. Remove wheelhouse.

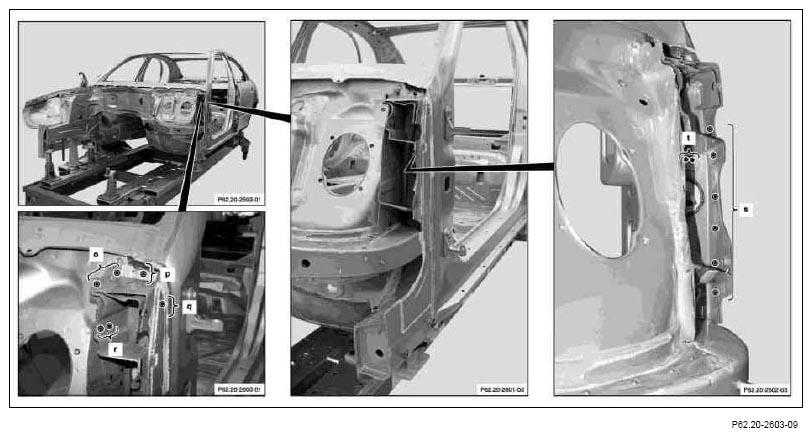

   Fig 3: Locating Spot Welds (Areas O, P, R, S And T)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Expose spot welds and cut out with spot weld cutter (areas o, p, r, s and t).
4. Feel spot welds from inside and cut out (area q).
5. Remove upper longitudinal member reinforcement section.

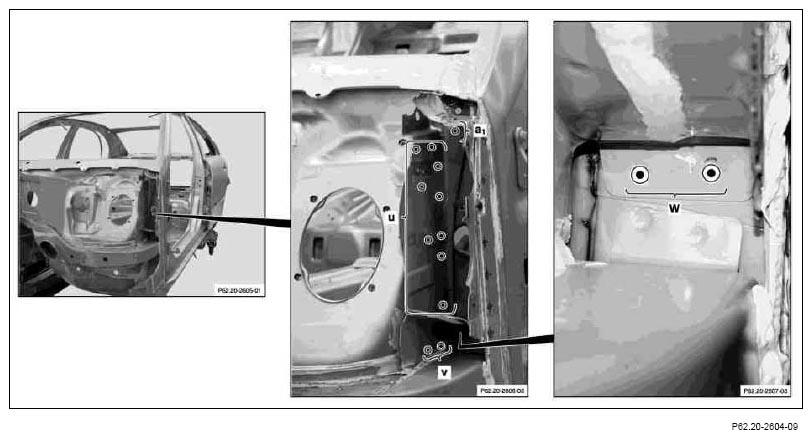

   Fig 4: Locating Spot Welds (Areas U, V, W And A1)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
6. Expose spot welds and cut out with spot weld cutter (areas u, v, w and a1).
7. Remove remaining element from wheelhouse.
