Separating wheelhouse on fender side - AR62.20-P-1200-12T

Fig 1: Identifying Weld Spot Miller (201 589 00 51 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-01A	Ball cutter, dia. 12 mm
WH58.30-Z-1006-01A	Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1002-03A	Straight grinder (electric/pneumatic)
WE58.40-Z-1004-03A	Body saw (electric/pneumatic)

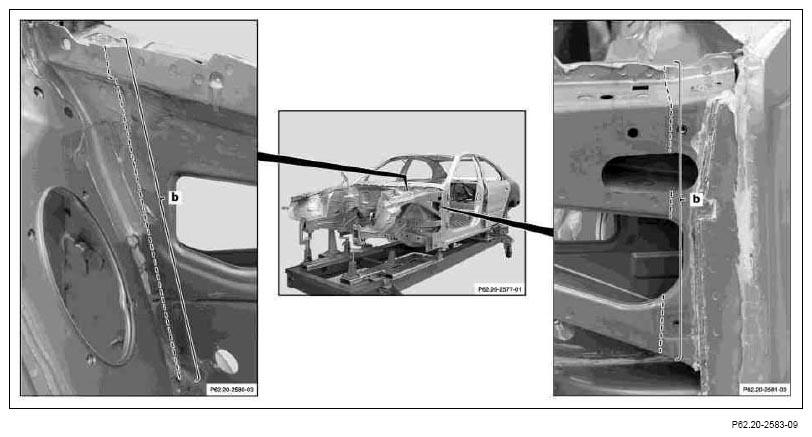

Fig 2: Locating Separation Point On Longitudinal Member Top (Area B)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Mark separation point on longitudinal member top and separate with body saw (area b).
Completely separate longitudinal member at inner and outer top.

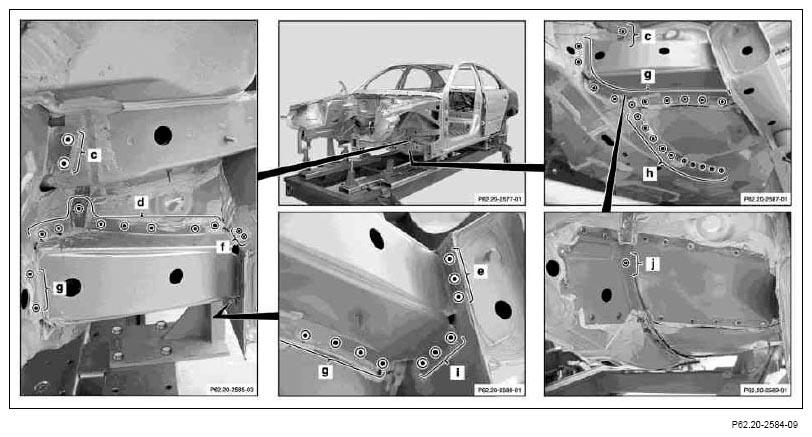

Fig 3: Locating Spot Welds (Areas C, D, E, F, G, H And I)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Expose spot welds and cut out with spot weld cutter (areas c, d, e, f, g, h and i).
Remove cross member from pedal floor on left.
Expose spot welds and cut out with spot weld cutter (area j).
