Installing test and welding device - AR62.20-P-1286-04TA

Fig 1: Identifying Test And Welding Device (211 589 01 23 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Test And Welding Device (211 589 02 23 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Test and welding device

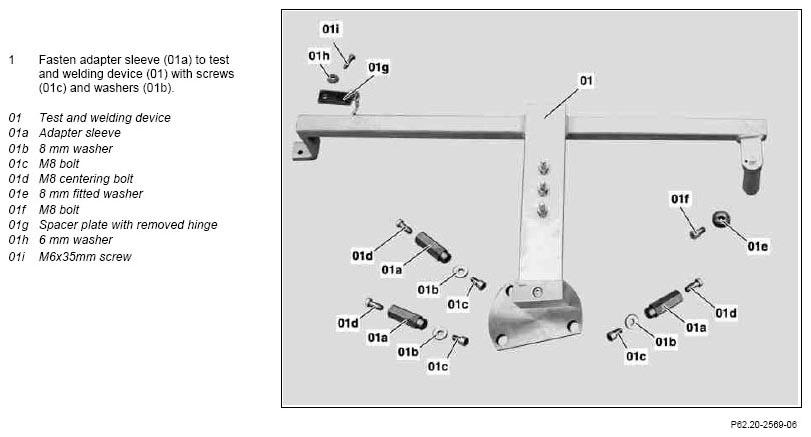

Fig 3: Identifying Test And Welding Device Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

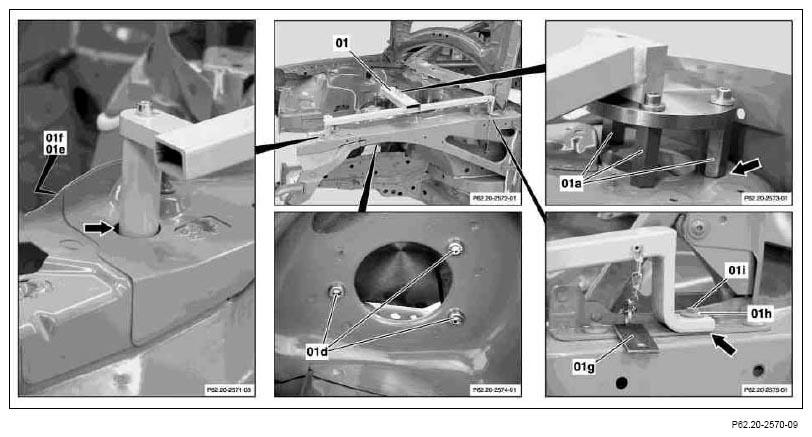

Fig 4: Positioning Test And Welding Device To Spring Strut Dome, Engine Hood Hinge And Upper Front Longitudinal Member

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Install test and welding device

1. 2 Position test and welding device (01) to spring strut dome, engine hood hinge and upper front longitudinal member (arrows).
2. 3 Screw centering screw (01d) into adapter sleeves (01a) from bottom.
3. 4 Screw screw (01i) and washer (01h) into threaded hole on engine hood hinge.

   Use spacer plate (01g) with hinge removed. (arrows).

4. 5 Screw screw (01f) and fitted washer (01e) into test and welding device at engine side.
