Install SBC bracket (engine installed) - AR62.20-P-1260-11T

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1012-13A	Blind rivet 6.5x12.5	A 004 990 16 97

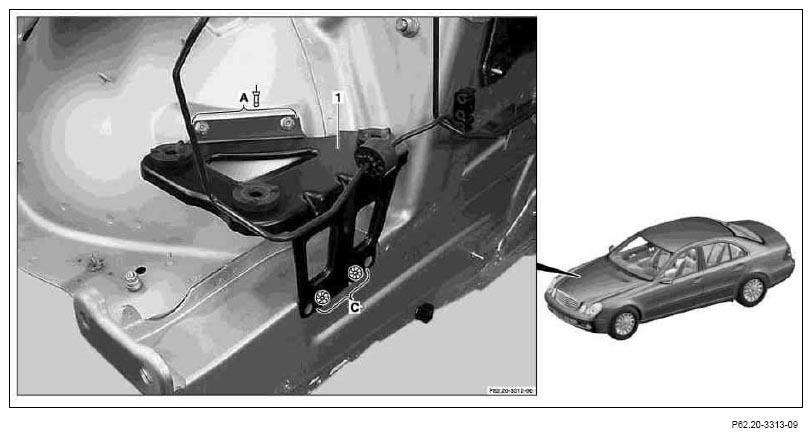

Fig 1: Identifying SBC Bracket Areas (A & C)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Rivet SBC bracket (1) Taurus 4 blind riveter and 6.5 x 12. 5 steel/steel blind rivets (area A).
2. SBC bracket (1) (area C).

   Shown on model 211.0
