Brakes -- Location, Removal & Installation -- E550 (211.072)
>>
Basic Knowledge
>>
Traction system hydraulic unit, location - GF42.50-P-4000-02E
Traction system hydraulic unit, location - GF42.50-P-4000-02E

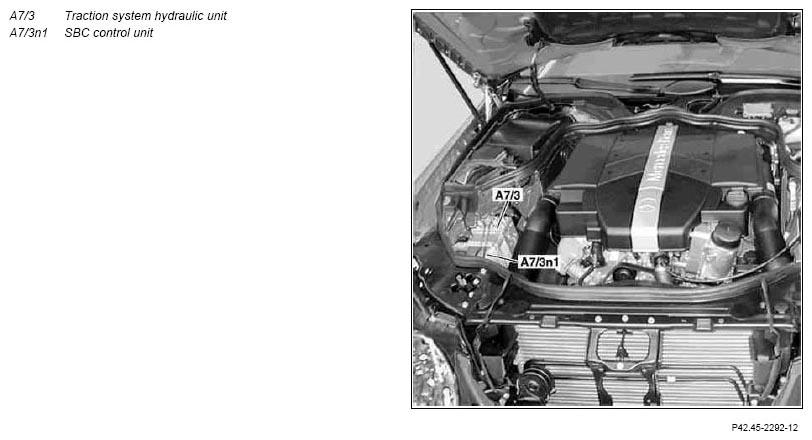

Fig 1: Locating Traction System Hydraulic Unit And SBC Control Unit
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
