Brakes -- Location, Removal & Installation -- E550 (211.072)
>>
Basic Knowledge
>>
Sensotronic Brake Control (SBC) function, location of electrical components - GF42.46-P-0001-03E
Sensotronic Brake Control (SBC) function, location of electrical components - GF42.46-P-0001-03E
Shown on model 211.0

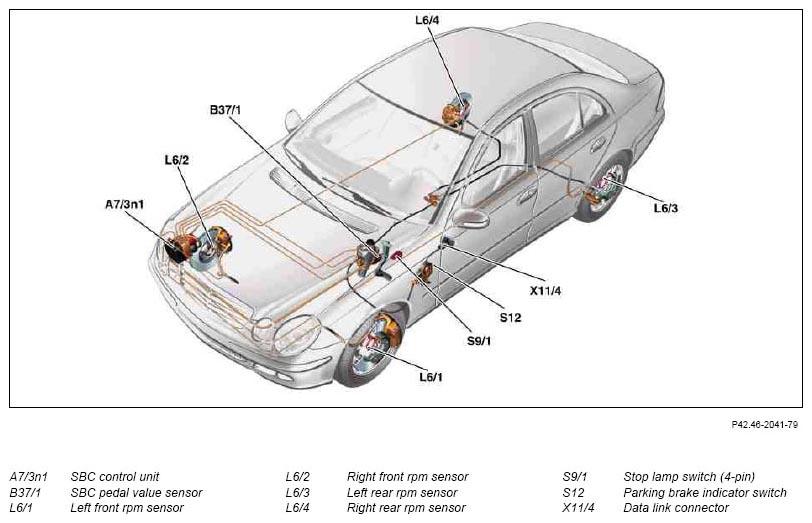

Fig 1: Locating Sensotronic Brake Control Electrical Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
