SBC pedal value sensor, location - GF42.46-P-4210-01SL
SBC pedal value sensor, location - GF42.46-P-4210-01SL
Models 211, 230
Location illustrated on model 230

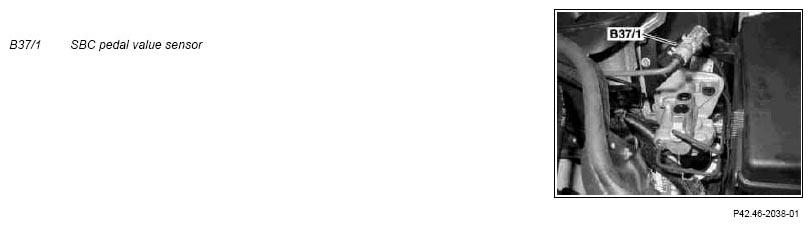

Fig 1: Locating SBC Pedal Value Sensor
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
