Remove/install front axle brake caliper - AR42.10-P-0070R

MODEL 211.026 up to 31.8.03,

211.028/029/056,

211.065 up to 31.8.03,

211.070/072/223/226/256/265/270/272/616/620

MODEL 211.041/241

with CODE (950) EVOLUTION AMG sport package

with CODE (952) Sport package

MODEL 230.454/456/458/467/471/475

MODEL 211.252/254

except CODE (494) California version

except CODE (498) Japan version

except CODE (625) Australia version

MODEL 211.052/054

with CODE (950) EVOLUTION AMG sport package

with CODE (952) Sport package

MODEL 211.057/257 except CODE (494) California version

MODEL 211.024

with CODE (Z04) Light armoring

with CODE (950) EVOLUTION AMG sport package

with CODE (952) Sport package

	Remove/install
	Risk of injury  caused by body parts being jammed or crushed. Risk of injury  to skin and eyes caused by brake fluid spraying out at high pressure when working on the SBC brake system	Deactivate SBC brake system using STAR DIAGNOSIS.	AS42.46-Z-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Deactivate SBC brake system using STAR DIAGNOSIS.	Vehicles with Sensotronic Brake Control (SBC)
		The following steps should be run through in STAR DIAGNOSIS:
		Select menu item "SBC Sensotronic Brake Control"/"Deactivate 'SBC' system".
		Then process all the individual steps from top to bottom.

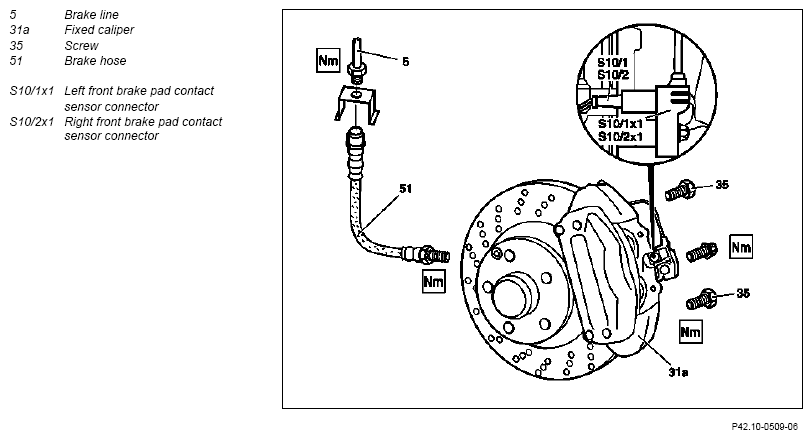

2	Remove brake hose (51)	Model 211	AR42.10-P-0013T
		Model 230	AR42.10-P-0013R
3	Remove brake pads		AR42.10-P-1600R
4	Detach connector (S10/1x1, S10/2x1) from fixed brake caliper (31a)		*BA42.10-P-1003-10H
			*BA42.10-P-1003-10B
5	Remove bolts (35) and remove fixed caliper (31a)		*BA42.10-P-1001-10H
			*BA42.10-P-1001-10B
6	Install in the reverse order
7.1	Bleed SBC brake system using STAR DIAGNOSIS	Vehicles with Sensotronic Brake Control (SBC)	AR42.10-P-0012R
		When performing the bleeding operation always observe the instructions in the document "Bleeding brake system using STAR DIAGNOSIS".
		The following steps should be run through in STAR DIAGNOSIS:
		Select menu item "Initial startup after repair"/"Exchanging brake calipers".
		Then process all the individual steps from top to bottom.
7.2	Bleed brake system	Vehicles without Sensotronic Brake Control (SBC)	AR42.10-P-0010T

Number	Designation				Model 211 except model 211.076/077/276/277
BA42.10-P-1001-10H	Self-locking bolt, brake caliper to steering knuckle	M12		Nm	115
		M14	Stage 1	Nm	80
			Stage 2	∠°	45
BA42.10-P-1003-10H	Bolt, brake pad contact sensor to brake caliper			Nm	8

Number	Designation		Model 230.454/456/458/467/475, Model 230.471 with code 494	Model 230.470/472/474/476/477/model 230.479 without code P99 model 230.471 without code 494
BA42.10-P-1001-10B	Self-locking bolt, brake caliper to steering knuckle	Nm	115	180
BA42.10-P-1003-10B	Bolt, brake pad contact sensor to brake caliper	Nm	8	8
