Operating unit, location - GF42.46-P-4200-01SL

Shown on model 230 left-hand drive vehicle

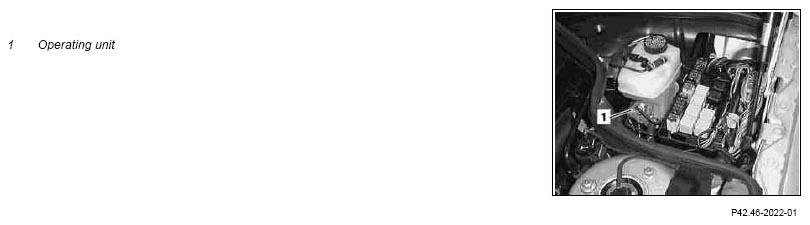

Fig 1: Locating Operating Unit

G07502596

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
