Brakes -- Location, Removal & Installation -- E550 (211.072)
>>
Basic Knowledge
>>
ESP control module, location - GF42.45-P-4500-03EE
ESP control module, location - GF42.45-P-4500-03EE
Model 211

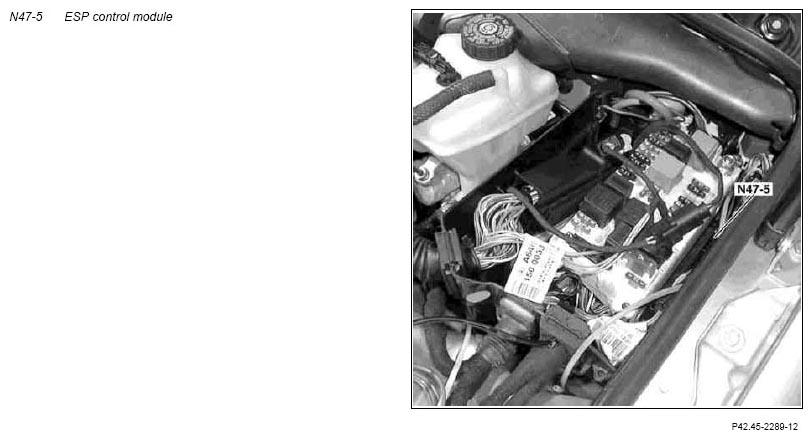

Fig 1: Locating ESP Control Module
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
